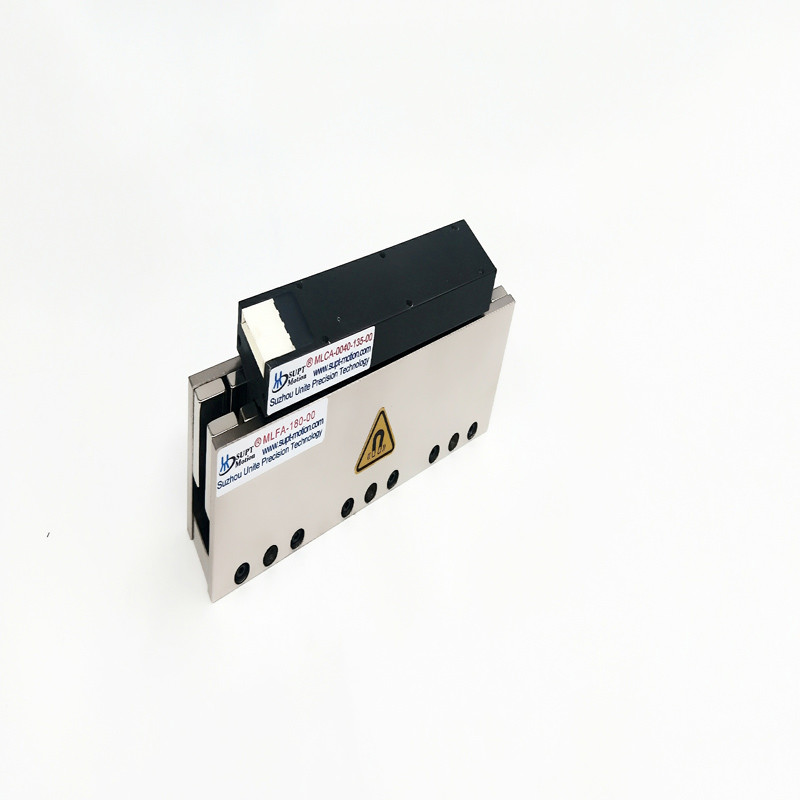

High Acceleration Linear Servo Actuator 360N Linear Motion Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001, CE |
| Model Number | MLCD-0120-135-00 |
| Minimum Order Quantity | ≥1 |
| Price | $270.00 - $290.00/pieces |
| Packaging Details | Carton/Wooden box for linear motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 2000 Piece/Pieces per Month linear motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Peak Force(N) | 360 |
|---|---|---|---|
| Peak Current(Amps) | 4.5 | Linear Motor(mh) | 5.7 |
| Continuous Force(N) | 120 | Continuous Current(Amps) | 1.5 |
| Weight Rotor(kg) | 0.68 | Port | Shanghai Linear Motor |
| Highlight | High Acceleration Linear Servo Actuator ISO9001,Linear Servo Actuator 360N,360N Servo Motor Linear Motion |
||
Product Description
Easy To Control New High Acceleration Linear Motor High Acceleration
Product Description
The easy to control new linear motor is an innovative linear motion device that achieves high-precision, smooth, and flexible linear motion control through the use of advanced design and control technology. This type of linear motor is widely used in multiple fields and has the following characteristics:
1. High precision control: The new type of linear motor that is easy to control has excellent accuracy and can achieve micrometer level positioning and movement, suitable for applications that require high precision control.
2. Smooth motion: The easily controllable linear motor can provide smooth and continuous motion, avoiding vibration and impact in traditional transmission systems, and is suitable for applications that require high-quality motion.
3. Quick Response: This type of motor has a fast response time and can complete position adjustment and speed changes in a short period of time, suitable for motion needs that require rapid changes.
4. Customization: New types of easily controllable linear motors can usually be customized according to application requirements, including motor parameters, dimensions, and control methods.
5. Low noise: Due to the elimination of friction and mechanical noise from transmission components, easily controlled linear motors typically have lower operating noise.
6. Widely used: This type of motor has a wide range of applications in industrial automation, medical equipment, optical systems, precision machining, research laboratories, and other fields.
Technical Parameters:
| D Series--MLCD(Dynamic) MLFD(Stator) | |||||||
| Model/Par | MLCD-0055-075-00 | MLCD-0120-135-00 | MLCD-0200-255-00 | ||||
| Peak force(Fp) | N | 165 | 360 | 600 | |||
| Peak current(lp) | Amps | 4.5 | 4.5 | 7.8 | |||
| Continuous force(Fc) | N | 55 | 120 | 200 | |||
| Continuous current(lc) | Amps | 1.5 | 1.5 | 2.6 | |||
| Actuator constants(DC motor conversion/3p)(Ka) | N/W | 11.1 | 16.9 | 21.9 | |||
| Constant Thrust(L-L)(Kf) | N/Amps | 39.1 | 80.5 | 80.5 | |||
| Back EMF constant(L-L)(Kb) | V/m/sec | 22.6 | 47.2 | 44.8 | |||
| Electrical constant(Te) | ms | 0.35 | 0.35 | 0.35 | |||
| Resistance(L-L)(R) | @25℃Ω | 8.2 | 16.1 | 8.2 | |||
| Inductance(L-L)(l) | mh | 2.85 | 5.7 | 2.86 | |||
| Heat transfer coefficient(Rth) | ℃/W | *2.6 | **1.5 | **0.88 | |||
| Coil maximum temperature(Tmax) | ℃ | 120 | 120 | 120 | |||
| Magnet Pole pitch(2T) | mm | 30 | 30 | 30 | |||
| Mover weight | Kg | 0.38 | 0.68 | 1.3 | |||
| Linear motor performance parameters | |||||||

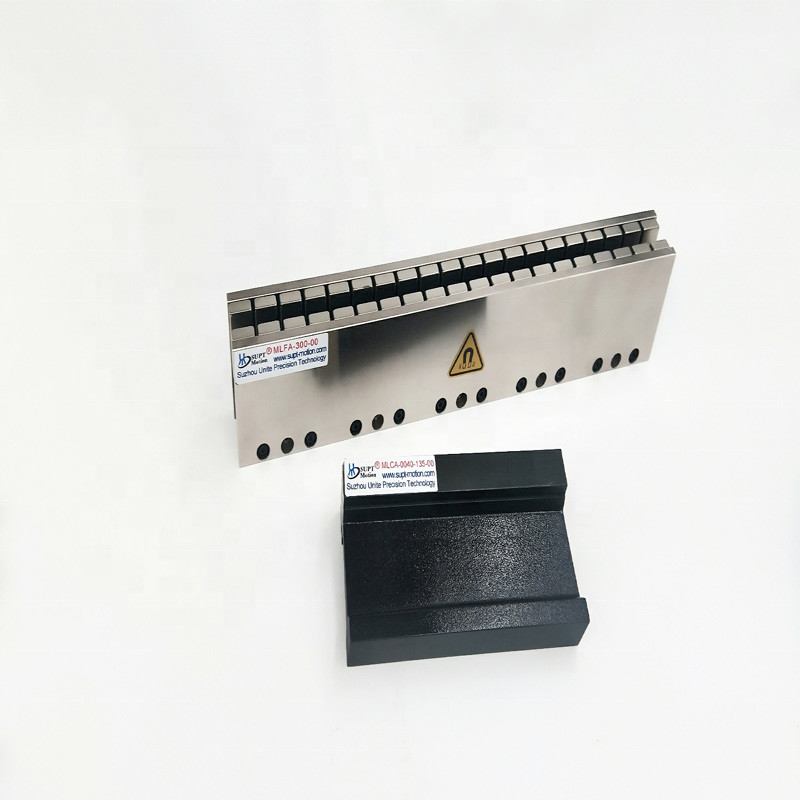

| A Series--MLCA(Dynamic) MLFA(Stator) | |||||||
| Model/Par | MLCA-0020-075-00 | MLCA-0040-135-00 | MLCA-0080-255-00 | ||||
| Peak force(Fp) | N | 60 | 120 | 240 | |||
| Peak current(lp) | Amps | 4.8 | 4.2 | 4.2 | |||
| Continuous force(Fc) | N | 20 | 40 | 80 | |||
| Continuous current(lc) | Amps | 1.6 | 1.4 | 1.4 | |||
| Actuator constants(DC motor conversion/3p)(Ka) | N/W | 5.65 | 7.9 | 11.2 | |||
| Constant Thrust(L-L)(Kf) | N/Amps | 15.3 | 30.4 | 60.3 | |||
| Back EMF constant(L-L)(Kb) | V/m/sec | 8.8 | 17.6 | 34.8 | |||
| Electrical constant(Te) | ms | 0.3 | 0.3 | 0.3 | |||
| Resistance(L-L)(R) | @25℃Ω | 4.8 | 9.4 | 19.2 | |||
| Inductance(L-L)(l) | mh | 1.51 | 3 | 6 | |||
| Heat transfer coefficient(Rth) | ℃/W | *3.9 | *1.9 | **1.3 | |||
| Coil maximum temperature(Tmax) | ℃ | 120 | 120 | 120 | |||
| Magnet Pole pitch(2T) | mm | 30 | 30 | 30 | |||
| Mover weight | Kg | 0.24 | 0.42 | 0.82 | |||

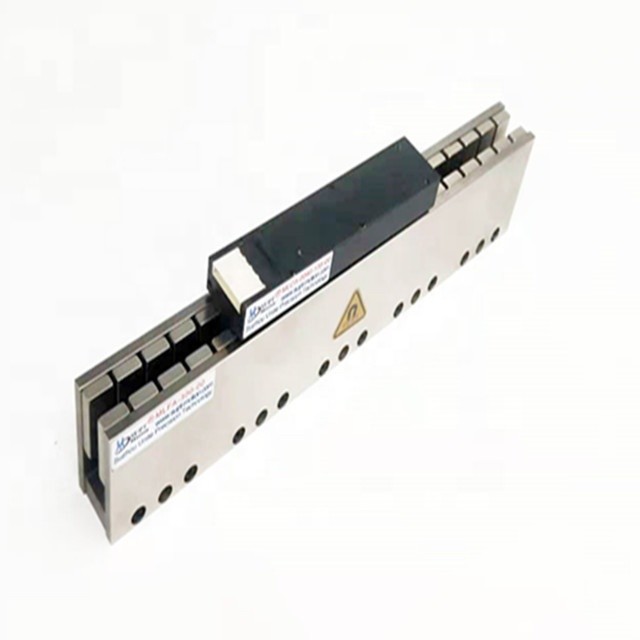

U-type linear motors-d series linear motors are widely used in a variety of products. SUPT MOTION serves the following markets: semiconductor manufacturing equipment, including wafer fabrication and chip packaging equipment; precision testing equipment for the Flat panel display industry; Hard disk manufacturing, manufacturing, printing plate making equipment, life science, medical equipment, machine vision inspection equipment, various pick-up equipment, electronic component surface mounting, PCB testing equipment, logistics equipment, etc.
Packaging & Shipping
Main port:Shanghai/Shenzhen/Guangzhou or as require.
Leading time:Normally goods can be ready within in 20-40days.
Express company:DHL,TNT,UPS,FEDEX,etc.
