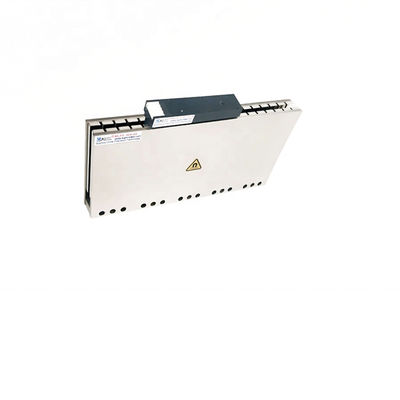

Low Noise Direct Drive Coil Motor High Speed Coreless Linear MotorFor The Robot

Place of Origin Jiangsu, China
Brand Name SUPT
Certification ce, ISO9001
Model Number MLCB-0040-075-00
Minimum Order Quantity ≥1
Price $130.00/pieces >=1 pieces
Packaging Details Carton/Wooden box for direct drive motor
Delivery Time 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated
Payment Terms T/T
Supply Ability 2000 Piece/Pieces per Month direct drive motor

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 3months-1year Usage BOAT, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical Project
Type Micro Motor Torque Requests
Construction Permanent Magnet Commutation Brushless
Protect Feature Totally Enclosed Speed(RPM) High Speed
Continuous Current(A) 1.65Amps Efficiency IE 1
Peak Force(N) 120 Direct Drive Motor(ms) 0.3
Continuous Force(N) 40 Peak Current(Amps) 4.9
Continuous Current(Amps) 1.65 Weight Rotor(kg) 0.28
Port Shanghai Direct Drive Motor
Highlight

Robot Direct Drive Linear Motor

,

Direct Drive Linear Motor High Speed 120N

,

Ironless Linear Motor Low Noise 120N

Leave a Message
Product Description

Robot Motor Direct Drive Linear Ironless Motor High Speed Low Noise











Product Description:

Direct drive motors play a significant role in robotics, offering distinct advantages that enhance the performance, efficiency, and capabilities of robotic systems. Their contributions include:

1. High Precision and Accuracy: Direct drive motors eliminate mechanical components like gears and belts, minimizing backlash and positional errors. This leads to higher precision and accuracy in robot movement, critical for tasks requiring intricate manipulation and precise positioning.

2. Smooth Motion: These motors provide smooth and continuous motion without the vibrations and jerks associated with traditional mechanical transmission systems. This is essential for tasks such as delicate object handling, assembly, and motion control.

3. Rapid Acceleration and Deceleration: Direct drive motors enable rapid changes in velocity and direction, allowing robots to quickly respond to dynamic environments, avoid obstacles, and execute agile movements.

4. Compact Design: The absence of bulky mechanical transmission components results in a more compact robot design. This is advantageous for applications in confined spaces or environments where space optimization is crucial.

5. Reduced Maintenance: With fewer moving parts and less wear-prone components, direct drive motors require less maintenance and have longer operational lifetimes compared to traditional motors with mechanical transmissions.

6. High Torque Density: Direct drive motors often have higher torque density, allowing robots to generate more force in a smaller form factor. This is beneficial for applications requiring heavy lifting or manipulating objects with varying degrees of resistance.





Technical Parameters:

B Series--MLCB(Dynamic) MLFB(Stator)
Model/Par MLCB-0040-075-00 MLCB-0080-135-00 MLCB-0145-255-00
Peak force(Fp) N 120 240 435
Peak current(lp) Amps 4.9 4.8 4.45
Continuous force(Fc) N 40 80 145
Continuous current(lc) Amps 1.65 1.6 1.48
Actuator constants(DC motor conversion/3p)(Ka) N/W 8.4 12.1 16.3
Constant Thrust(L-L)(Kf) N/Amps 24.6 49.5 97.5
Back EMF constant(L-L)(Kb) V/m/sec 14.2 28.6 56.3
Electrical constant(Te) ms 0.3 0.3 0.3
Resistance(L-L)(R) @25℃Ω 5.6 11.2 23.4
Inductance(L-L)(l) mh 1.8 3.78 7.5
Heat transfer coefficient(Rth) ℃/W *3.2 *1.86 **0.95
Coil maximum temperature(Tmax) 120 120 120
Magnet Pole pitch(2T) mm 30 30 30
Mover weight Kg 0.28 0.49 0.97

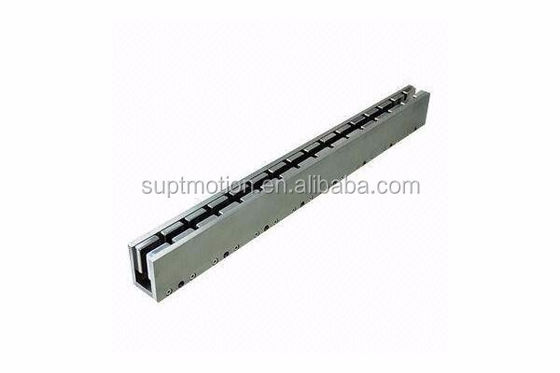

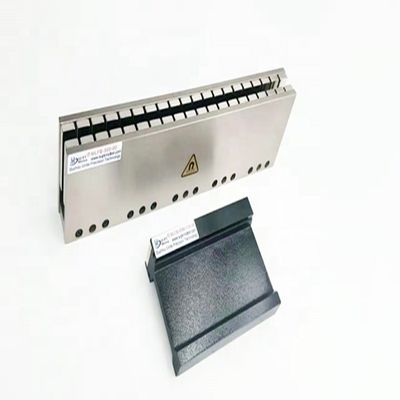

U-shaped coreless linear motor MLCB seriesMover only coil no magnet, no suction between the moverstator, no tooth slot effect, smooth running.
The power weight is light, which can achieve high speed and acceleration.
mooth thrust characteristics, with the application of grating ruler, to achieve high precisior
he stroke can be extended arbitrarily, silent, maintenance-free.
filling, high flexible power cabl
Nidely used in semiconductor manufacturing equipment,flatoanel displav industry precision testing equipment,laser cutting.laser marking,marking,machine vision testing equipment.Modular design, can be processed and customized.

Low Noise Direct Drive Coil Motor High Speed Coreless Linear MotorFor The Robot 0

Our Services



Almost any requirement can be successfully fulfilled

Satisfactory after-sales service

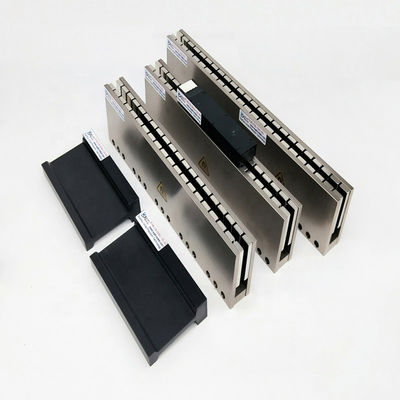

Product range
