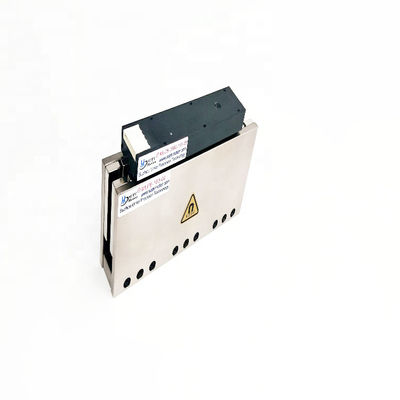

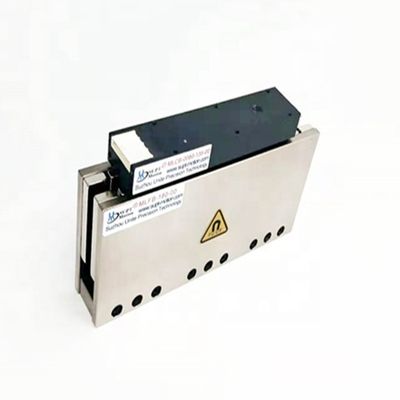

Micro High Precision Linear Actuator High Acceleration U-Type Coreless Linear Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | MLCB-0145-255-00 |
| Minimum Order Quantity | 2 pieces |
| Price | $270.00 - $280.00/pieces |
| Packaging Details | Carton/Wooden box for linear motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 2000 Piece/Pieces per Month linear motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brushless |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 2.6Amps | Efficiency | IE 1 |
| Peak Force(N) | 435 | Peak Current(Amps) | 4.45 |
| Linear Motor(mh) | 1.8 | Port | Shanghai Linear Motor |
| Highlight | Micro High Precision Linear Actuator 435N,High Precision Linear Actuator High Acceleration,High Accuracy Linear Actuator 435N |
||
Product Description
Light Weight Linear Servo Motor High Acceleration High Frequency Response
Product Description
U-type coreless linear motor MLCB series linear motor, this model is MLCB-0145-255-00 actuator only coil without magnet, no suction between the moving stator, no grooving effect running smoothly. And with light weight, high speed, high acceleration and other characteristics, smooth thrust characteristics, with the application of grating ruler, to achieve high precision stroke can be extended arbitrarily, quiet, maintenance-free. Are also CE,ISO9001,CCC certification, widely used and semiconductor manufacturing equipment, flat panel display industry precision testing equipment, laser cutting, laser marking, machine vision testing equipment, is the perfect choice for each application.
Linear motors find diverse applications across various industries due to their unique characteristics. Some primary applications of linear motors include:
1. Industrial Automation:Linear motors are used in industrial automation for tasks such as precise positioning, assembly, and material handling on production lines.
2. Semiconductor Manufacturing: Linear motors play a critical role in semiconductor manufacturing equipment for wafer handling, lithography, and other high-precision processes.
3. Medical Devices: Linear motors are used in medical devices for applications like precise motion control in surgical robots, imaging equipment, and diagnostic instruments.
4. Aerospace and Defense: Linear motors are used in aerospace applications for aircraft seating adjustments, satellite positioning systems, and missile guidance.
5. Printing and Packaging: Linear motors are utilized in high-speed printing and packaging machinery for accurate label placement, cutting, and folding.
6. Laboratory Automation: Linear motors are used in laboratory automation systems for pipetting, sample handling, and analytical equipment.
7. Photonics and Optics: Linear motors are employed in optical systems for beam steering, lens positioning, and precise optical component alignment.
8. Electronics Manufacturing: Linear motors are used in electronics assembly lines for PCB testing, pick-and-place operations, and soldering.
9. Textile Machinery: Linear motors are used in textile machinery for controlling the movement of fabric, ensuring precise weaving and pattern alignment.
10. Medical Imaging: Linear motors contribute to the movement of beds, gurneys, and scanning devices in medical imaging equipment.
Technical Parameters:
| B Series--MLCB(Dynamic) MLFB(Stator) | |||||||
| Model/Par | MLCB-0040-075-00 | MLCB-0080-135-00 | MLCB-0145-255-00 | ||||
| Peak force(Fp) | N | 120 | 240 | 435 | |||
| Peak current(lp) | Amps | 4.9 | 4.8 | 4.45 | |||
| Continuous force(Fc) | N | 40 | 80 | 145 | |||
| Continuous current(lc) | Amps | 1.65 | 1.6 | 1.48 | |||
| Actuator constants(DC motor conversion/3p)(Ka) | N/W | 8.4 | 12.1 | 16.3 | |||
| Constant Thrust(L-L)(Kf) | N/Amps | 24.6 | 49.5 | 97.5 | |||
| Back EMF constant(L-L)(Kb) | V/m/sec | 14.2 | 28.6 | 56.3 | |||
| Electrical constant(Te) | ms | 0.3 | 0.3 | 0.3 | |||
| Resistance(L-L)(R) | @25℃Ω | 5.6 | 11.2 | 23.4 | |||
| Inductance(L-L)(l) | mh | 1.8 | 3.78 | 7.5 | |||
| Heat transfer coefficient(Rth) | ℃/W | *3.2 | *1.86 | **0.95 | |||
| Coil maximum temperature(Tmax) | ℃ | 120 | 120 | 120 | |||
| Magnet Pole pitch(2T) | mm | 30 | 30 | 30 | |||
| Mover weight | Kg | 0.28 | 0.49 | 0.97 | |||

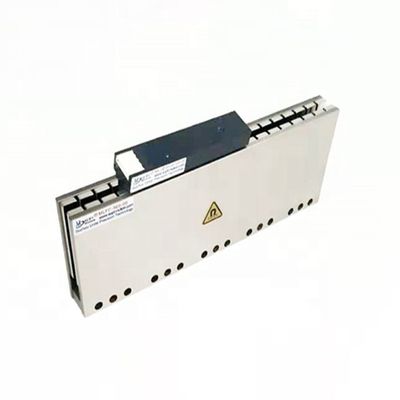

U-channel type linear motor -B series
Linear motor are untilized in wide variety of products,Markets serviced by SUPT MOTION include:Semiconductor manufacturing equipment, including wafer fabrication and chip packaging equipment ;Flat panel display industry precision test equipment, hard disk manufacturing, manufacturing,printing plate making equipment; Life science, medical equipment, machine vision inspection equipment, a variety of fetching device; Electronic element surface mount, PCB testing equipment, logistics equipment etc.
The main application of the linear motor:
1.semiconductor manufacturing equipment,including wafer fabrication and chip packaging equipment,etc.
2.The flat panel display(FPD)industry,precision test equipment/hard disk manufacturing/connector manufacturing/printing plate-making equipment,etc.
3.Life sciences,medical devices,machine vision inspection equipment,all kinds of devices to take place.
4.Electronic components SMT,PCB testing equipment.
5.Logistics equipment devices.
Our Services
Technical indicators & specifications can be customized
One sample,freight collect
Satisfactory after-sales service
