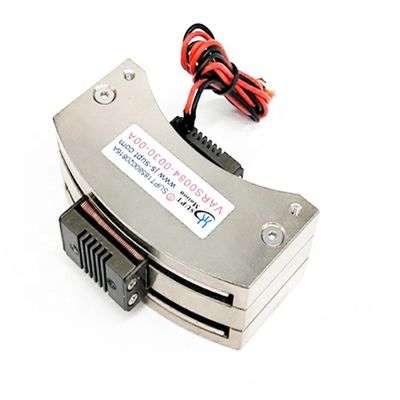

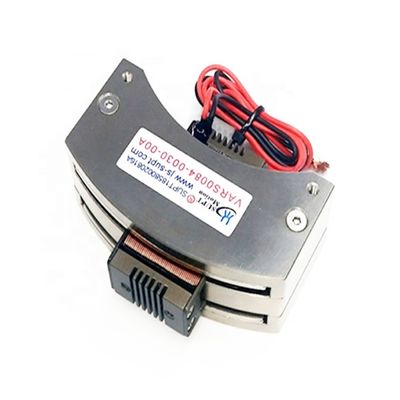

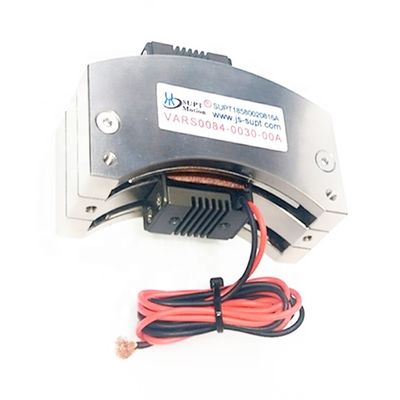

Light Weight High Frequency Rotary Voice Coil Motor For Handling Manipulator
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce, ISO9001 |
| Model Number | VARS0084-030-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $230.00/pieces 2-79 pieces |
| Packaging Details | carton packing |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 1000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, 3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | 30 |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Variable Speed |
| Continuous Current(A) | 2.8 | Efficiency | IE 1 |
| Peak Torque(N-m) | 0.84 | Maximum Travel(mm) | 30 |
| Linear Voice Coil Actuator (V) | 6.3 | Continous Torque(N-m) | 0.84 |
| Back EMF Constant(L-L)(Kb) | 0.2 | Coil Weight(g) | 54.2 |
| Length(mm) | 75 | Width(mm) | 48.9 |
| Height(mm) | 30.6 | Applications | Semiconductor,Automation,Aircraft Industry |
| Port | Shanghai | ||
| Highlight | High Frequency Rotary Voice Coil Actuator,Rotary Voice Coil Actuator 75MM,Moving Coil Actuator For Handling Manipulator |
||
Product Description
Light Weight High Frequency Rotary Voice Coil Motor For Handling Manipulator
Product Description
Rotary voice coil motors play a crucial role in the application of material handling robotic arms. These motors provide precise and controlled rotational motion to the robotic arm, allowing it to manipulate objects with accuracy and efficiency. By generating torque through the interaction between the coil's magnetic field and a permanent magnet, rotary voice coil motors enable the robotic arm to rotate its end effector and position objects in a desired manner.
The motors' high precision, rapid response, and smooth motion characteristics make them ideal for tasks that require accurate object manipulation, such as picking, placing, and sorting. In material handling applications, rotary voice coil motors contribute to increased productivity, reduced cycle times, and improved overall efficiency of robotic systems. Their ability to provide fast and accurate rotation allows robotic arms to handle various objects with different sizes and shapes, making them a crucial component in modern automated material handling processes.
Technical Parameters:
| VARS Series of Swing type voice coil motor | ||||||||
| Model | Peak torque(N-M) | Continuous torque25℃(N-M) | Maximum travel(mm) | Voltage(V) | Back EMF constant(V/m/S) | Coil weight(g) | Width*height (mm) | Length(mm) |
| VARS0008-026-00A | 0.080 | 0.045 | 26.0 | 6.4 | 0.045 | 11.7 | 39.8*26.1 | 35.00 |
| VARS0017-090-00A | 0.170 | 0.110 | 90.0 | 11.1 | 0.11 | 18.0 | 44*39 | 70.00 |
| VARS0022-032-00A | 0.220 | 0.120 | 32.0 | 15.5 | 0.16 | 21.5 | 51.5*26 | 60.00 |
| VARS0042-040-00A | 0.420 | 0.380 | 40.0 | 3.5 | 0.12 | 38.0 | 53.6*30.3 | 82.00 |
| VARS0077-020-00A | 0.770 | 0.630 | 20.0 | 6.7 | 0.24 | 66.0 | 50*30 | 75.00 |
| VARS0084-030-00A | 0.840 | 0.600 | 30.0 | 6.3 | 0.2 | 54.2 | 48.9*30.6 | 75.00 |
| VARS0120-020-00A | 1.200 | 1.200 | 20.0 | 8.4 | 0.67 | 65.0 | 73.5*32 | 80.00 |
| VARS0706-014-00A | 7.100 | 2.100 | 14.0 | 52.4 | 1.03 | 220.0 | 65*54.5 | 115.00 |
| VARS4520-030-00A | 45.200 | 19.000 | 30.0 | 71.5 | 4.3 | 1300.0 | 240*78 | 240.00 |
Applications:
The Rotary Voice Coil Motor (VCM) is an efficient and reliable rotary device using the technology of the curved voice coil motor, which provides up to 100 degrees of torque, has light weight, high frequency response, high acceleration and high accuracy, low noise and high reliability. Its model is VARS0084-030-00A and its peak thrust is 0.84 N-m, which is an ideal choice for applications requiring a rotary motor with superior and reliable performance. It also offers a three-month to one-year warranty, depending on the application. With the rotating voice coil motor, you can ensure high quality performance and maximum efficiency.
