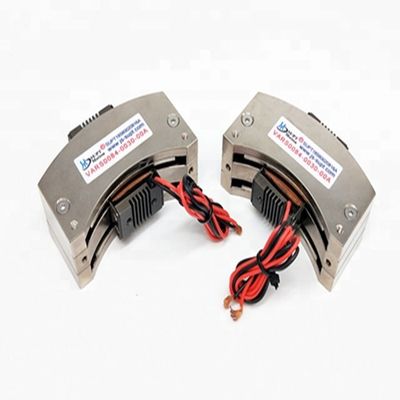

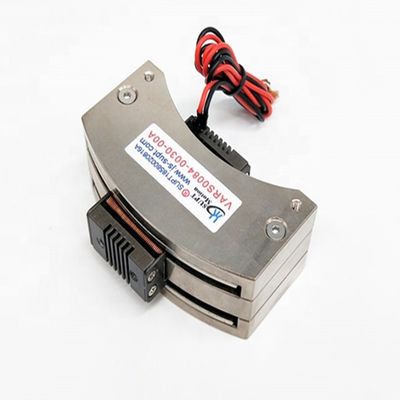

High Accuracy Rotary Voice Coil Motor Moving Coil Actuator For Focusing Lens Slider
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce, ISO9001 |
| Model Number | VARS0084-030-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $215.00/pieces 2-29 pieces |
| Packaging Details | carton packing |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 1000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, 3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | 30 |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Variable Speed |
| Continuous Current(A) | 2.8 | Efficiency | IE 1 |
| Peak Torque(N-m) | 0.84 | Maximum Travel(mm) | 30 |
| Voice Coil Motor (V) | 6.3 | Continous Torque(N-m) | 0.84 |
| Back EMF Constant(L-L)(Kb) | 0.2 | Coil Weight(g) | 54.2 |
| Length(mm) | 75 | Width(mm) | 48.9 |
| Height(mm) | 30.6 | Applications | Semiconductor,Automation,Aircraft Industry |
| Port | Shanghai | ||
| Highlight | High Accuracy Rotary Voice Coil Motor,Rotary Voice Coil Motor 2.8A,Moving Coil Actuator 2.8A |
||
Product Description
New Voice Coil Motor For Focusing Lens Slider High-Accuracy High Frequency
Product Description
The use of swing type new voice coil motors in focusing lenses usually involves achieving precise adjustment of the focusing lens to change the focal length and focus of the beam. The following is the general usage method of the swing type new voice coil motor in the focusing lens:
1. Motor installation: Install the swing type new voice coil motor on the mechanical structure connected to the focusing lens. Ensure that the connection between the motor and the lens is secure.
2. Lens Support Structure: Ensure that the focusing lens is installed on a support structure that allows the lens to undergo small rotational or oscillating movements under the control of the motor.
3. Circuit connection: Connect the coil of the motor to the control circuit. This control circuit can control the current based on the input signal, thereby controlling the rotation or oscillation of the motor.
4. Sensor installation (optional): If closed-loop control and precise feedback are required, a position sensor or angle encoder can be installed between the motor and the lens to monitor the actual position of the lens.
5. Control System: Establish a control system that can control the rotation or oscillation of the motor by inputting control signals. This can be a microcontroller or computer based system.
6. Motion Control: Adjust the control signal according to actual needs to control the rotation or swing angle of the motor. This can cause slight changes in the position of the lens.
7. Focusing adjustment: By controlling the movement of the motor, minor adjustments are made to the focusing lens. This can change the focal length of the beam, thereby changing the focal point of the beam.
8. Real time feedback (optional): If a sensor is installed, the position of the lens can be monitored in real-time and adjusted as needed to achieve more precise focus control.
Technical Parameters:
| VARS Series of Swing type voice coil motor | ||||||||
| Model | Peak torque(N-M) | Continuous torque25℃(N-M) | Maximum travel(mm) | Voltage(V) | Back EMF constant(V/m/S) | Coil weight(g) | Width*height (mm) | Length(mm) |

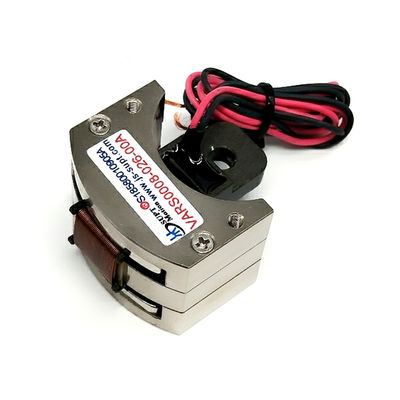

| VARS0008-026-00A | 0.080 | 0.045 | 26.0 | 6.4 | 0.045 | 11.7 | 39.8*26.1 | 35.00 |
| VARS0017-090-00A | 0.170 | 0.110 | 90.0 | 11.1 | 0.11 | 18.0 | 44*39 | 70.00 |
| VARS0022-032-00A | 0.220 | 0.120 | 32.0 | 15.5 | 0.16 | 21.5 | 51.5*26 | 60.00 |
| VARS0042-040-00A | 0.420 | 0.380 | 40.0 | 3.5 | 0.12 | 38.0 | 53.6*30.3 | 82.00 |
| VARS0077-020-00A | 0.770 | 0.630 | 20.0 | 6.7 | 0.24 | 66.0 | 50*30 | 75.00 |
| VARS0084-030-00A | 0.840 | 0.600 | 30.0 | 6.3 | 0.2 | 54.2 | 48.9*30.6 | 75.00 |
| VARS0120-020-00A | 1.200 | 1.200 | 20.0 | 8.4 | 0.67 | 65.0 | 73.5*32 | 80.00 |
| VARS0706-014-00A | 7.100 | 2.100 | 14.0 | 52.4 | 1.03 | 220.0 | 65*54.5 | 115.00 |
| VARS4520-030-00A | 45.200 | 19.000 | 30.0 | 71.5 | 4.3 | 1300.0 | 240*78 | 240.00 |
Applications:
The swing type voice coil motor series adopts the technology of the rectangular series products, bending the rectangular series products to form a certain priority angle positioning system. The typical torque is 100 degrees and the torque is 50N-m. Its response frequency is high, the response time is short, has the high precision, the high speed, the high acceleration and so on characteristic, the swing type series product typically applies in the laser technology mirror locator, the utility model relates to a swing type valve brake, a swing type positioning system and a flight controller, relating to the fields of semiconductor industry, automation and aircraft industry.
