High Precision VARS Series Rotary Voice Coil Motors For The Semiconductor Industry
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce, ISO9001 |
| Model Number | VARS0008-026-00A |
| Minimum Order Quantity | ≥1 |
| Price | $120.00/pieces >=1 pieces |
| Packaging Details | in carton and as customer requirements<br>voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 8000 Piece/Pieces per Month voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Variable Speed |
| Continuous Current(A) | Current | Efficiency | IE 1 |
| Product Name | Brushless DC Motor | Application | Automatic Product |
| Motor Type | Dc Motor | Keywords | DC Series Motor |
| Name | VARS Series Motor | Rated Voltage | 6.4V |
| Size | 40mm | Color | Silver/Black |
| Item | Mini Electric Motors | Packing | In Carton |
| Port | Shanghai Port | ||
| Highlight | VARS Series Rotary Voice Coil Motor,ood Force Characteristics Moving Coil Actuator,6.4V Rotary Voice Coil Motor |
||
Product Description
Good Force Characteristics VARS Series Swing Voice Coil Motor Made In China
Product Description
Arc voice coil motors play an important role in the semiconductor industry, mainly focusing on precise positioning, adjustment, and control of semiconductor manufacturing and semiconductor equipment. The following are the important roles of arc-shaped voice coil motors in the semiconductor industry:
1. Semiconductor manufacturing equipment: Arc voice coil motors are widely used in semiconductor manufacturing equipment, such as etching machines, ion implantation machines, lithography machines, etc. These devices require high-precision position control and motion adjustment to achieve precise manufacturing of semiconductor chips.
2. Manipulators and robots: In semiconductor manufacturing, robotic arms and robots are commonly used for handling and processing semiconductor wafers. Arc-shaped voice coil motors can achieve motion control of robotic arms and robots, ensuring accurate handling and handling operations.
3. Welding and Packaging: During the semiconductor packaging and welding process, it is necessary to position and align the semiconductor chip to ensure accurate connection and packaging. The curved voice coil motor can be used to achieve precise chip positioning and adjustment.
4. Lithography and Mask Alignment: During the lithography and mask alignment process, it is necessary to make minor positional adjustments to the semiconductor wafer to ensure accurate transmission of the lithography pattern onto the wafer. The curved voice coil motor can be used to achieve fast and accurate position adjustment.
5. Testing and Measurement Equipment: The semiconductor industry requires high-precision testing and measurement equipment to verify the quality and performance of chips. Arc-shaped voice coil motors can be used to drive moving parts for precise measurement and detection operations.
Features:
- Product Name: Rotary Voice Coil Motor
- Name: VARS Series Motor
- Material: Aluminum Alloy
- Type: Micro Motor
- Size: 40mm
- Rated Voltage:6.4V
Technical Parameters:
| VARS Series of Swing type voice coil motor | ||||||||
| Model | Peak torque(N-M) | Continuous torque25℃(N-M) | Maximum travel(mm) | Voltage(V) | Back EMF constant(V/m/S) | Coil weight(g) | Width*height (mm) | Length(mm) |
| VARS0008-026-00A | 0.080 | 0.045 | 26.0 | 6.4 | 0.045 | 11.7 | 39.8*26.1 | 35.00 |
| VARS0017-090-00A | 0.170 | 0.110 | 90.0 | 11.1 | 0.11 | 18.0 | 44*39 | 70.00 |
| VARS0022-032-00A | 0.220 | 0.120 | 32.0 | 15.5 | 0.16 | 21.5 | 51.5*26 | 60.00 |
| VARS0042-040-00A | 0.420 | 0.380 | 40.0 | 3.5 | 0.12 | 38.0 | 53.6*30.3 | 82.00 |
| VARS0077-020-00A | 0.770 | 0.630 | 20.0 | 6.7 | 0.24 | 66.0 | 50*30 | 75.00 |

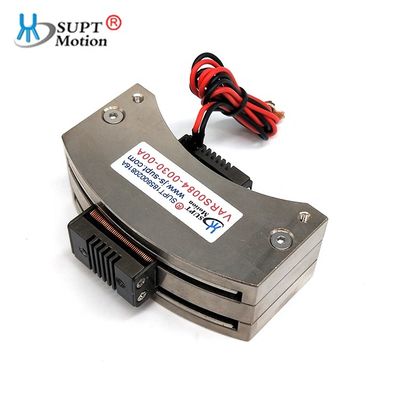

| VARS0084-030-00A | 0.840 | 0.600 | 30.0 | 6.3 | 0.2 | 54.2 | 48.9*30.6 | 75.00 |
| VARS0120-020-00A | 1.200 | 1.200 | 20.0 | 8.4 | 0.67 | 65.0 | 73.5*32 | 80.00 |

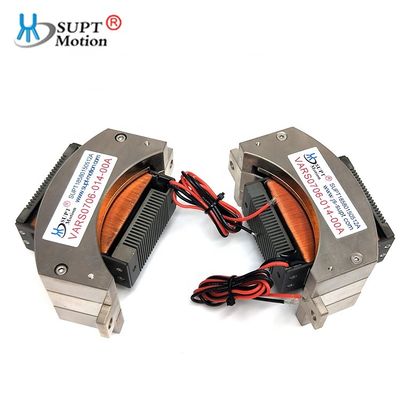

| VARS0706-014-00A | 7.100 | 2.100 | 14.0 | 52.4 | 1.03 | 220.0 | 65*54.5 | 115.00 |
| VARS4520-030-00A | 45.200 | 19.000 | 30.0 | 71.5 | 4.3 | 1300.0 | 240*78 | 240.00 |
Applications:
Rotary Voice Coil Motor
The Rotary Voice Coil Motor, also known as Rotational Voice Coil or Rotating VCM, is widely used in various industries for its precise and smooth rotational motion, low noise and long life. It is a great choice for applications such as motorized platforms, robotic arms, medical equipment, and automotive parts. With its high reliability and stability, the Rotary Voice Coil Motor from SUPT MOTION is suitable for all kinds of industrial and commercial applications.
The Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators, rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,industrial and aerospace industries.
