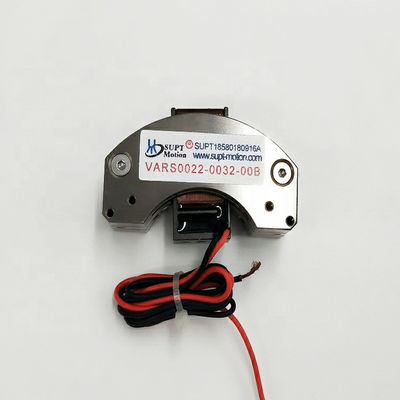

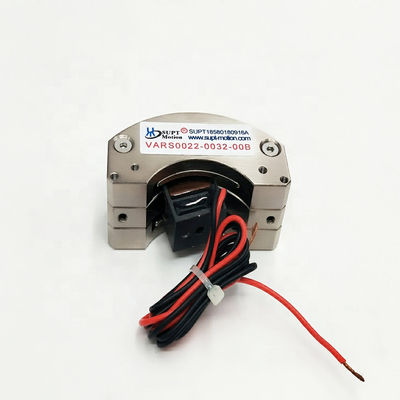

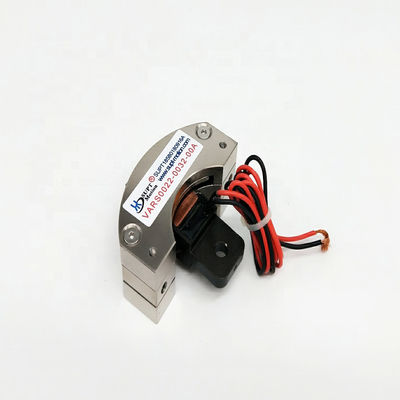

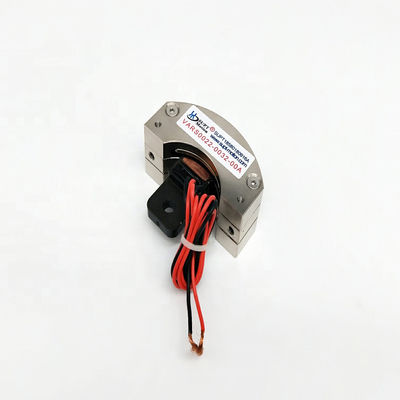

Short Response Time Rotary Voice Coil Micro Voice Coil Actuator For Valve Brake
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VARS0022-032-00A |
| Minimum Order Quantity | ≥1 |
| Price | $145.00/pieces 1-59 pieces |
| Packaging Details | Carton packing |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 1000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, Medical, Semiconductor, Aerospace, Valve Control, Vibration Platform And Automation Industry. |
|---|---|---|---|
| Type | Micro Motor | Torque | 30 |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | 20 |
| Continuous Current(A) | 1.4A | Efficiency | IE 1 |
| Peak Torque(N-m) | 0.22 | Maximum Travel(mm) | 32 |
| Mini Voice Coil Actuator (V) | 15.5 | Continous Torque(N-m) | 0.12 |
| Back EMF Constant(L-L)(Kb) | 0.16 | Coil Weight(g) | 21.5 |
| Length(mm) | 60 | Width(mm) | 51.5 |
| Height(mm) | 26 | Port | Shanghai |
| Highlight | Short Response Time Rotary Voice Coil,Rotary Voice Coil For Valve Brake 20RPM,Micro Voice Coil Actuator 20RPM |
||
Product Description
Short Response Time Mini Voice Coil Actuator For Valve Brake High Acceleration
Product Description
The swing-mode rotary voice coil motor plays a crucial role in valve actuators. It provides precise and controlled angular movement to regulate the opening and closing of valves. This motor's unique design allows it to deliver accurate and responsive motion within a limited angle range, making it an ideal choice for applications where fine adjustments and rapid responses are essential. In valve actuators, the swing-mode rotary voice coil motor ensures efficient and reliable operation of valves, contributing to improved process control and system performance.
The swing type voice coil motor series adopts the technology of the rectangular series products, bending the rectangular series products to form a certain priority angle positioning system. Provides up to 100 degrees of torque, with light weight, high frequency response, high acceleration, high accuracy, high sensitivity, low noise and high reliability. Its model is VARS0022-032-00A, its peak thrust is 0.22 n-m, swing-type products are typically used in laser technology in the mirror locator, swing-type valve brakes, swing-type positioning systems and flight controllers, related to the semiconductor industry, automation, aircraft industry, this is an ideal choice, applications require a rotary motor with superior and reliable performance.
|
The main application of a voice coil motor: |
|
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
|
3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
|
4.Vibration System:Shaking table, vibration platform. |
|
5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
|
6.Aviation Technology:Flight control system, pilot feedback system. |
|
7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
|
8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
Technical Parameters:
| VARS Series of Swing type Mini voice coil actuator | ||||||||
| Model | Peak torque(N-M) | Continuous torque25℃(N-M) | Maximum travel(mm) | Voltage(V) | Back EMF constant(V/m/S) | Coil weight(g) | Width*height (mm) | Length(mm) |
| VARS0008-026-00A | 0.080 | 0.045 | 26.0 | 6.4 | 0.045 | 11.7 | 39.8*26.1 | 35.00 |
| VARS0017-090-00A | 0.170 | 0.110 | 90.0 | 11.1 | 0.11 | 18.0 | 44*39 | 70.00 |
| VARS0022-032-00A | 0.220 | 0.120 | 32.0 | 15.5 | 0.16 | 21.5 | 51.5*26 | 60.00 |
| VARS0042-040-00A | 0.420 | 0.380 | 40.0 | 3.5 | 0.12 | 38.0 | 53.6*30.3 | 82.00 |
| VARS0077-020-00A | 0.770 | 0.630 | 20.0 | 6.7 | 0.24 | 66.0 | 50*30 | 75.00 |
| VARS0084-030-00A | 0.840 | 0.600 | 30.0 | 6.3 | 0.2 | 54.2 | 48.9*30.6 | 75.00 |
| VARS0120-020-00A | 1.200 | 1.200 | 20.0 | 8.4 | 0.67 | 65.0 | 73.5*32 | 80.00 |
| VARS0706-014-00A | 7.100 | 2.100 | 14.0 | 52.4 | 1.03 | 220.0 | 65*54.5 | 115.00 |
| VARS4520-030-00A | 45.200 | 19.000 | 30.0 | 71.5 | 4.3 | 1300.0 | 240*78 | 240.00 |
What is the technical principle of a swinging voice coil motor?
The Swing Mode Rotary Voice Coil Motor is a special type of motor that utilizes the interaction of current and magnetic field to achieve rotational motion. Its technical principle is based on Lorentz force and Faraday electromagnetic induction principle. The following is the technical principle of a swinging voice coil motor:
1. Magnetic Field and Coil: The core of a swing type voice coil motor is a circular coil that is fixed to the motor frame. A circular coil is a conductor of electric current that generates a magnetic field by applying electricity.
2. Permanent magnet: Place a permanent magnet (usually strong magnetic) around the circular coil. A permanent magnet generates a constant magnetic field that interacts with the current passing through the coil.
3. Lorentz force: When current passes through a circular coil, the current inside the coil will interact with the magnetic field generated by the permanent magnet, generating Lorentz force. Lorentz force is a force perpendicular to the direction of the current and magnetic field, and the direction of the force can be determined according to the left-hand rule.
4. Torque generation: Due to the Lorentz force, the circular coil begins to rotate. The Lorentz force causes the coil to experience a torque in the magnetic field, causing the coil to rotate.
5. Motion Control: By adjusting the current and direction through the coil, the speed and direction of the swing type voice coil motor can be controlled. The change in current will cause a change in Lorentz force, thereby adjusting the rotational speed of the motor.
6. Feedback System: In order to achieve closed-loop control, position or angle sensors (such as encoders) can be integrated into the motor to monitor the actual movement of the motor in real-time and provide feedback control.
