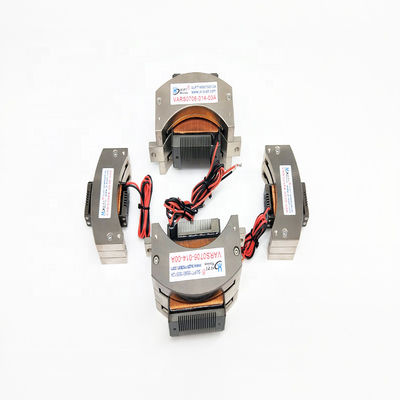

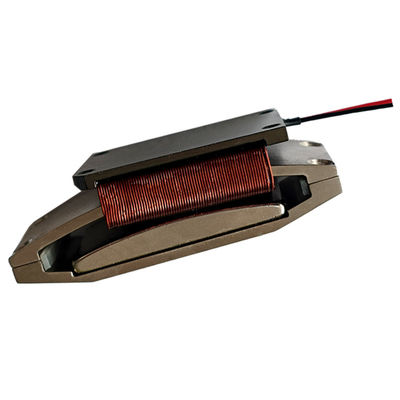

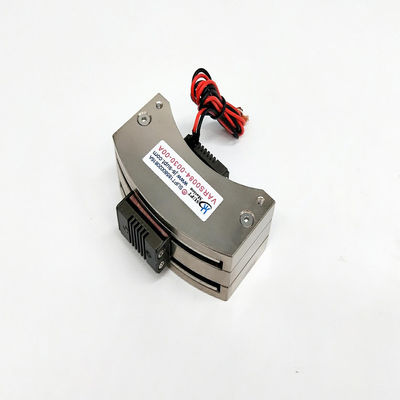

High Speed Rotary Voice Coil Motor Oscillation Reciprocation Voice Coil Motor VCM
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VARS0077-020-00A |
| Minimum Order Quantity | ≥1 |
| Price | $220.00/pieces |
| Packaging Details | carton & wooden box linear voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Ventilator, Microscope, Endoscope, Optics |
|---|---|---|---|
| Type | Micro Motor | Torque | 30 |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 3.2 | Efficiency | IE 1 |
| Peak Torque(N-m) | 0.77 | Maximum Travel(mm) | 20 |
| Voice Coil Motor(V) | 6.7 | Continous Torque(N-m) | 0.63 |
| Back EMF Constant(L-L)(Kb) | 0.24 | Coil Weight(g) | 66 |
| Length*Height(mm) | 75*30 | Width(mm) | 50 |
| Highlight | High Speed Rotary Voice Coil Motor,High Speed Voice Coil Motor VCM,Oscillation Reciprocation Voice Coil Motor VCM |
||
Product Description
High-Speed Oscillation Reciprocation Voice Coil Motor High-Accuracy
Product Description
The Rotary Actuators have taken the technology of the rectangular linear actuator and bent therm to provide a high resolution
limited angle positioning system.Typical stroke angles exceed 100 degrees and torques to 50 Nm.
The Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators
rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,
industrial and aerospace industries.
Features:
- Product Name: Rotary Voice Coil Motor
- Peak torque(N-m): 0.77N m
- Type: Rotary Motor
- Speed(RPM): High Speed
- Material: Aluminum Alloy
- Noise: Low
- Keywords: Rotary Voice Coil Motor, Rotating VCM, Curved Voice Coil Motor
- Warranty:3months-1year
Technical Parameters:
| VARS Series of Swing type voice coil motor | ||||||||
| Model | Peak torque(N-M) | Continuous torque25℃(N-M) | Maximum travel(mm) | Voltage(V) | Back EMF constant(V/m/S) | Coil weight(g) | Width*height (mm) | Length(mm) |
| VARS0008-026-00A | 0.080 | 0.045 | 26.0 | 6.4 | 0.045 | 11.7 | 39.8*26.1 | 35.00 |
| VARS0017-090-00A | 0.170 | 0.110 | 90.0 | 11.1 | 0.11 | 18.0 | 44*39 | 70.00 |
| VARS0022-032-00A | 0.220 | 0.120 | 32.0 | 15.5 | 0.16 | 21.5 | 51.5*26 | 60.00 |
| VARS0042-040-00A | 0.420 | 0.380 | 40.0 | 3.5 | 0.12 | 38.0 | 53.6*30.3 | 82.00 |
| VARS0077-020-00A | 0.770 | 0.630 | 20.0 | 6.7 | 0.24 | 66.0 | 50*30 | 75.00 |
| VARS0084-030-00A | 0.840 | 0.600 | 30.0 | 6.3 | 0.2 | 54.2 | 48.9*30.6 | 75.00 |
| VARS0120-020-00A | 1.200 | 1.200 | 20.0 | 8.4 | 0.67 | 65.0 | 73.5*32 | 80.00 |
| VARS0706-014-00A | 7.100 | 2.100 | 14.0 | 52.4 | 1.03 | 220.0 | 65*54.5 | 115.00 |
| VARS4520-030-00A | 45.200 | 19.000 | 30.0 | 71.5 | 4.3 | 1300.0 | 240*78 | 240.00 |
Applications:
Rotating voice coil motor curve, motor light weight, high response, high acceleration , high accuracy, response time short, high frequency. Swing Angle 1 -100 degree torque 1 -50 N, widely used in optical scanning positioning, focusing, semiconductor industry, automation, aerospace and other fields, for the precision control of fast mirrors. The Modular design can be processed and customized. The oscillating voice coil motor is a kind of curvilinear motor, which has been designed to rotate. It features high torque, low noise, and a 30mm short stroke. This voice coil motor has passed CE, ISO9001, CCC certification, in the wide range of efficient use of rotating voice coil motor is a good choice.
Main applications of voice coil motors: Semiconductor industry: wiring, cutting, drilling, transportation systems, welding, robotics. Field valve operation: type metering valve, pressure test system, pneumatic valve chemical injection system. Micro-machinery industry: feed system, micro-drill, precision stamping. Medical Field: microinjection system, respiratory equipment, testing equipment. Aviation Technology: Flight Control System, pilot feedback system. Commercial application: computer cooling pump micro camera autofocus system. Automation industry: Laser equipment, distributor, testing equipment, textile machinery.
