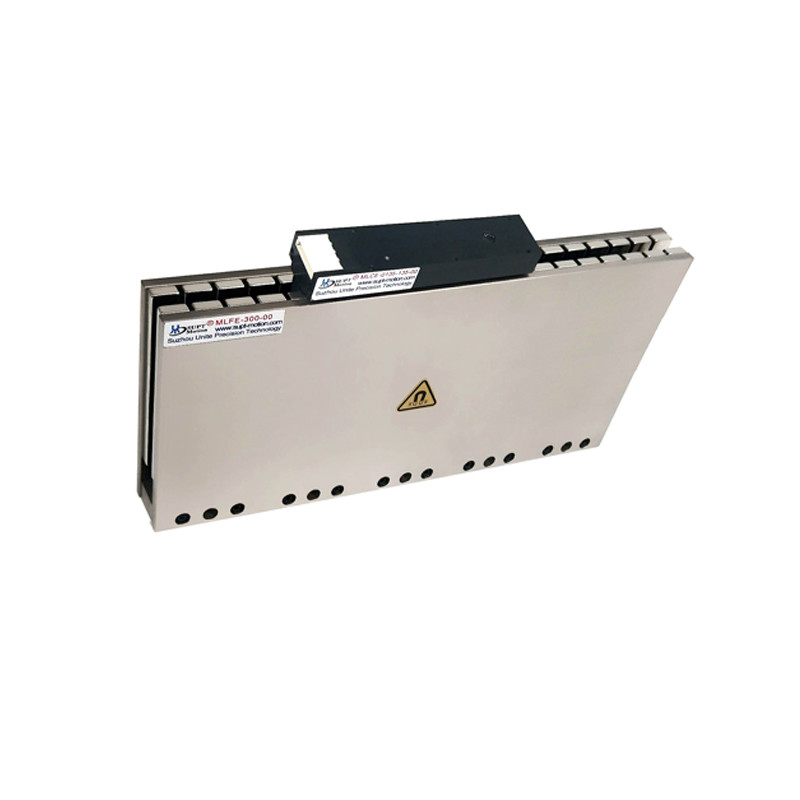

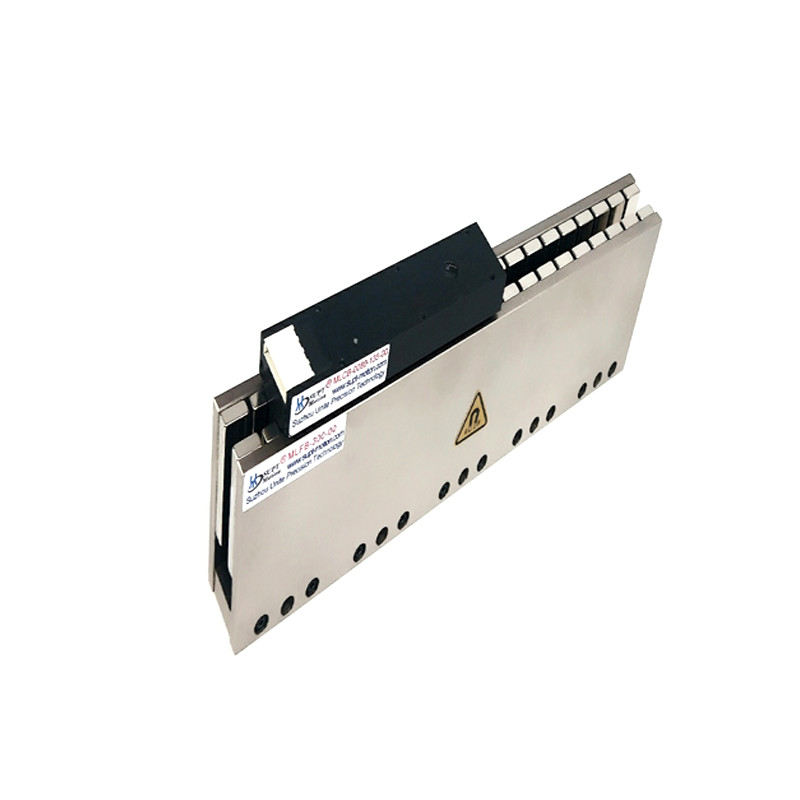

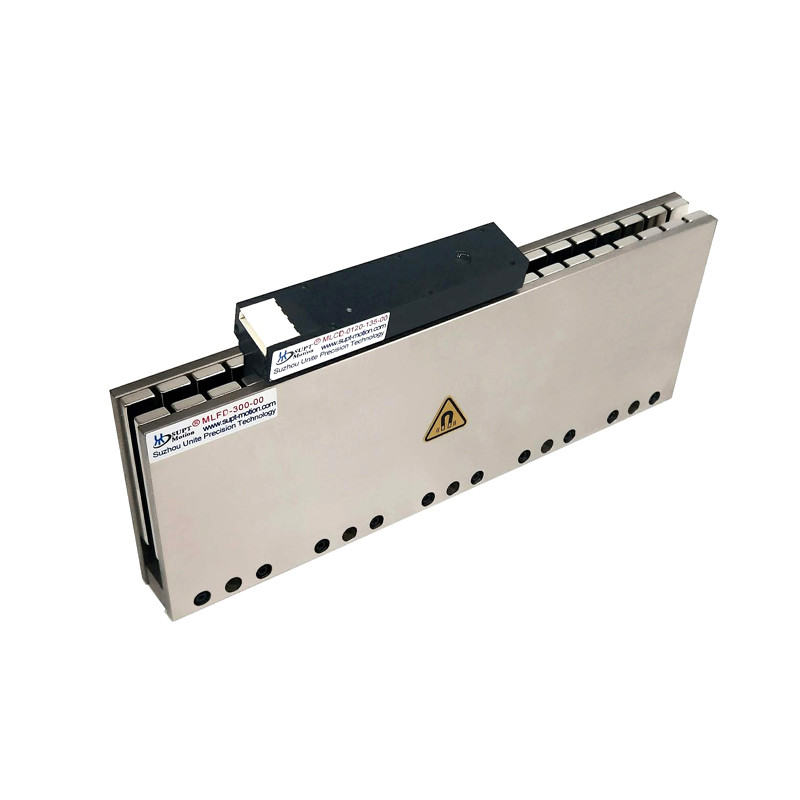

Light Weight Linear Voice Coil Motor High Acceleration Linear Servo Actuator
| Place of Origin | Suzhou china |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | MLCB series |
| Minimum Order Quantity | ≥1PCS |
| Price | $145-$160 |
| Packaging Details | carton packaging ect. |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 0.28kg | Power | 260N |
|---|---|---|---|
| Lifetime | 100 Million Times | Batch Number | YET-YQDJ69 |
| Magnet Pole pitch(2T) | 30mm | Connector Type | M12 |
| Motor Type | Linear Servo Motor | Noise | Low |
| Response Frequency | 2kHz | Voltage | 24V |
| Peak Force | 120N | Peak Current | 4.9A |
| Coil Maximum Temperature(Tmax) | 120 ℃ | ||
| Highlight | Light Weight Linear Servo Motor,Linear Servo Motor High Acceleration 260N,High Acceleration Linear Servo Actuator 260N |
||
Product Description
Light Weight Linear Servo Motor High Acceleration High Frequency Response
Product Description:
The primary role of lightweight linear servo motors in semiconductor manufacturing equipment is to provide precisely controlled linear motion for critical processes. These motors play a vital role in improving the efficiency, accuracy and reliability of the semiconductor manufacturing process.
Lightweight linear servo motors play a pivotal role in semiconductor manufacturing equipment by providing precise, high-speed and controlled linear motion. Their contribution extends to all stages of semiconductor production, ensuring precise positioning, alignment and motion, which is critical to the manufacture of advanced microchips and electronic components.
Linear motor are untilized in wide variety of products,Markets serviced by SUPT MOTION include:Semiconductor manufacturing equipment, including wafer fabrication and chip packaging equipment ;Flat panel display industry precision test equipment, hard disk manufacturing, manufacturing,printing plate making equipment; Life science, medical equipment, machine vision inspection equipment, a variety of fetching device; Electronic element surface mount, PCB testing equipment, logistics equipment etc.
Features:
- Product Name:Linear Servo Motor
- Control Mode: Closed Loop
- Positioning Accuracy: 0.01mm
- Encoder Type: Absolute Encoder
- Speed: High
- Product model: MLCB-0040-075-00
Technical Parameters:
| Parameter | Value |
|---|---|
| Motor Type | Linear Servo Motor,Linear voice coil motor |
| Rated Frequency | 100Hz |
| Peak force(Fp) | 120N |
| Noise Level | Low |
| Ambient Temperature | -20℃~+120℃ |
| Peak current(lp) | 4.9A |
| Voltage | 24V |
| Mounting Method | Flange |
| Length of the Coil(mm) | 30mm |
| Speed | High |
| Peak Force | 75N |
| B Series--MLCB(Dynamic) MLFB(Stator) | |||||||
| Model/Par | MLCB-0040-075-00 | MLCB-0080-135-00 | MLCB-0145-255-00 | ||||
| Peak force(Fp) | N | 120 | 240 | 435 | |||
| Peak current(lp) | Amps | 4.9 | 4.8 | 4.45 | |||
| Continuous force(Fc) | N | 40 | 80 | 145 | |||
| Continuous current(lc) | Amps | 1.65 | 1.6 | 1.48 | |||
| Actuator constants(DC motor conversion/3p)(Ka) | N/W | 8.4 | 12.1 | 16.3 | |||
| Constant Thrust(L-L)(Kf) | N/Amps | 24.6 | 49.5 | 97.5 | |||
| Back EMF constant(L-L)(Kb) | V/m/sec | 14.2 | 28.6 | 56.3 | |||
| Electrical constant(Te) | ms | 0.3 | 0.3 | 0.3 | |||
| Resistance(L-L)(R) | @25℃Ω | 5.6 | 11.2 | 23.4 | |||
| Inductance(L-L)(l) | mh | 1.8 | 3.78 | 7.5 | |||
| Heat transfer coefficient(Rth) | ℃/W | *3.2 | *1.86 | **0.95 | |||
| Coil maximum temperature(Tmax) | ℃ | 120 | 120 | 120 | |||
| Magnet Pole pitch(2T) | mm | 30 | 30 | 30 | |||
| Mover weight | Kg | 0.28 | 0.49 | 0.97 | |||
Applications:
The linear voice coil mover only has a coil without a magnet, There is no suction between the moving stator, non-cogging effect smooth operation.
Light mover mass,can achieve high speed acceleration
Smooth thrust characteristics,with the application of grating ruler to achieve high precision.
The stroke can be extended arbitrarily silent and maintenance-free.
Imported epoxy resin high temperature and high pressure vacuum filling,high flexible power cable.
Widely used in semiconductor manufacturing equipment,flat panel display industry precision testing equipment laser cutting,laser marking, machine vision testing equipment
Modular design,can be processed and customized.
It is widely used in semiconductor manufacturing equipment,flat panel display industry precision testing equipment laser cutting,laser marking, machine vision testing equipment,Modular design,can be processed and customized.
Support and Services:
Linear Servo Motor offers customers comprehensive technical support and services. Our team of professionals are available to answer any questions you may have about our products and services. We offer a resources, including product manuals, installation and troubleshooting guides, and FAQs. We also provide onsite technical support and services, such as installation, maintenance, repairs, and upgrades.
If you need help, please contact us at any time. We look forward to hearing from you and helping you get the most out of your Linear Servo Motor product.
Packing and Shipping:
Packaging and Shipping for Hollow Core Motor
We provide quality packaging and shipping for our Hollow Core Motor products to ensure their safe arrival. Each motor is packed and shipped with the following steps:
- The motor is placed in a box or bag that fits it securely.
- The box or bag is then placed in an outer box for additional protection.
- The outer box is sealed with packing tape.
- The box is labeled with the correct address and shipping information.
- The box is shipped via a reputable shipping company.
We take pride in making sure our customers receive their products in perfect condition. If you have any questions or concerns about packaging and shipping, please don't hesitate to contact us.
FAQ:
Q&A for SUPT MLCB-0040-075-00 Linear Servo Motor
- Q: What is the brand name of this Hollow Core Motor?
A: The brand name is SUPT. - Q: What is the model number of this Hollow Core Motor?
A: The model number is MLCB series. - Q: Where is this Hollow Core Motor made?
A: This Hollow Core Motor is made in Jiangsu, China. - Q: What certification does this Hollow Core Motor have?
A: This Hollow Core Motor has ISO9001 certification.
