11V 90° Stroke Light Weight Motor Rotating Voice Coil Motor For Precision Control
| Place of Origin | china,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VARS series |
| Minimum Order Quantity | 1PCS |
| Price | $125-$230 |
| Packaging Details | Carton packaging etc. |
| Delivery Time | sample order 2-3 days,other one work days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 18g | Length | 70mm |
|---|---|---|---|
| Voltage | 11V | Batch Number | YET-YQDJ11 |
| Quantity | 5002 | Lifetime | 100 Million Times |
| Product Model | VARS0017-090-00A | ||
| Highlight | 50mm Stroke Light Weight Motor VCM,24V Rotating Voice Coil Motor,50mm Stroke Rotating Voice Coil Motor |
||
You can tick the products you need and communicate with us in the message board.
| Model | Price | |
|---|---|---|

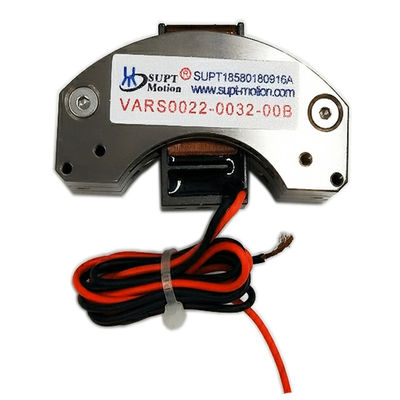

| VARS0022-0032-00B | $210 | |
| VARS0048-0030-00A | $175 | |
| VARS0706-0014-00A | $150 |
Product Description
Light Weight Rotating Voice Coil Motor For Precision Control 24V 50mm Stroke
Product Description:
The application of swing type voice coil motors is quite extensive, let's talk about its application in optical mirrors. The application of swing type voice coil motors in optical mirrors mainly focuses on the precise positioning, adjustment, and stability of optical components to ensure the accuracy of the optical path and the performance of the optical system. The following are some application methods of swing type voice coil motors in optical mirrors:
1. Mirror adjustment: The swinging voice coil motor can be used to adjust the angle and position of the optical mirror surface to achieve precise beam control. For example, in laser beam alignment applications, voice coil motors can achieve precise positioning of the laser beam through small rotational movements.
2. Plane Mirror Rotation: For applications such as interferometers and spectrometers, it is necessary to accurately control the rotation angle of the plane mirror. The swinging voice coil motor can achieve fast and accurate plane mirror rotation to ensure measurement accuracy.
3. Optical scanning: The swinging voice coil motor can drive the optical mirror for scanning motion, used for scanning imaging, optical measurement and other applications. Its high accuracy and fast response characteristics make it outstanding in these applications.
4. Adaptive optics: In adaptive optics systems, swing type voice coil motors can be used to adjust the shape and position of optical components in real-time to correct aberrations and distortions in the optical system.
5. Optical Stability: For applications that require maintaining optical stability, such as high-resolution imaging and laser beam stability, swing type voice coil motors can achieve small and precise mirror adjustments to eliminate the effects of vibration and external interference.
6. Mirror positioning: In applications such as automatic alignment and fiber optic communication, swing type voice coil motors can be used to locate mirrors to ensure accurate positioning and transmission of optical signals.
1. Mirror adjustment: The swinging voice coil motor can be used to adjust the angle and position of the optical mirror surface to achieve precise beam control. For example, in laser beam alignment applications, voice coil motors can achieve precise positioning of the laser beam through small rotational movements.
2. Plane Mirror Rotation: For applications such as interferometers and spectrometers, it is necessary to accurately control the rotation angle of the plane mirror. The swinging voice coil motor can achieve fast and accurate plane mirror rotation to ensure measurement accuracy.
3. Optical scanning: The swinging voice coil motor can drive the optical mirror for scanning motion, used for scanning imaging, optical measurement and other applications. Its high accuracy and fast response characteristics make it outstanding in these applications.
4. Adaptive optics: In adaptive optics systems, swing type voice coil motors can be used to adjust the shape and position of optical components in real-time to correct aberrations and distortions in the optical system.
5. Optical Stability: For applications that require maintaining optical stability, such as high-resolution imaging and laser beam stability, swing type voice coil motors can achieve small and precise mirror adjustments to eliminate the effects of vibration and external interference.
6. Mirror positioning: In applications such as automatic alignment and fiber optic communication, swing type voice coil motors can be used to locate mirrors to ensure accurate positioning and transmission of optical signals.
Features:
- Product Name: Rotary Voice Coil Motor
- Weight: 18g
- Size: 100mm*100mm*100mm
- Name: Rotary Voice Coil Motor
- Stroke: 90°
- Life: 10000h
- Special Feature: Curved Voice Coil Motor, Rotating VCM, Rotary Voice Coil Motor
Technical Parameters:
| Parameters | Details |
|---|---|
| Type | Rotary Voice Coil Motor (Rotary VCM, Rotary voice coil Actuator) |
| Warranty | 1 Year |
| Stroke | 90° |
| Peak torque | 0.17N-m |
| Noise | Low |
| Size | 100*100*100mm |
| Length | 70mm |
| Speed | High |
| Weight | 18g |
| Voltage | 11V |
| Product Model | Peak torque (N-m) |
Continuos torque at 25℃(N-m) |
Total Stroke degrees ( mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil(g) | Length (mm) |
Width (mm) |
Height (mm) |
| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |
| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |

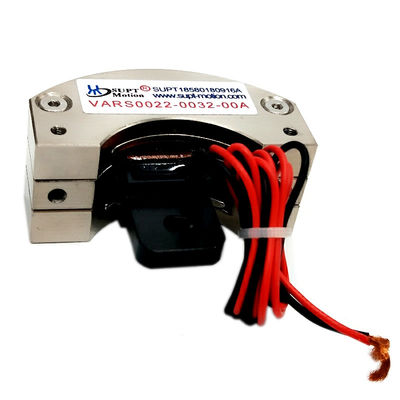

| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |
| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |

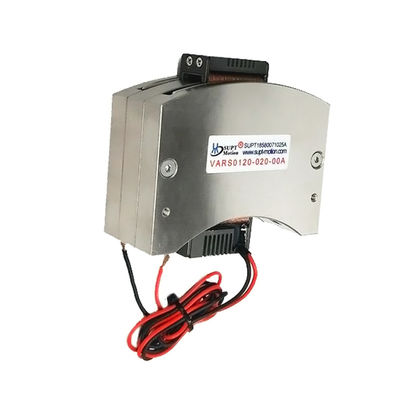

| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | 78 |
Applications:
The Rotary Actuators have taken the technology of the rectangular linear actuator and bent therm to provide a high resolution limited angle positioning system.Typical stroke angles exceed 100 degrees and torques to 50 N-mThe Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators, rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,industrial and aerospace industries.
Customization:
Welcome to choose SUPT MOTION Rotary Voice Coil Motor!
Brand Name: SUPT MOTION
Model Number: VARS Series
Place of Origin: Jiangsu, China
Certification: ISO9001-2000
Minimum Order Quantity: ≥1
Price: $125-$230
Packaging Details: Carton Packaging etc
Delivery Time: Sample order 2-3 days,other one work days, bulk to be negotiated
Payment Terms: T/T
Supply Ability: Interview
Material: Aluminum Alloy
Weight:Light
Warranty: 1 Year
Life: 10000h
Accuracy: 0.05mm
SUPT MOTION Rotary Voice Coil Motor is a kind of rotational voice coil, Rotary Voice Coil Actuator, Rotating Voice Coil Motor. It is made of aluminum alloy material, light weight and accurate.
Support and Services:
Rotary Voice Coil Motor Technical Support and Service
We offer high quality technical support and service for our Rotary Voice Coil Motor product. Our knowledgeable and experienced technical support team can help you troubleshoot any issues you may have with the product and provide valuable advice to ensure optimal performance.
We offer a variety of services to ensure your Rotary Voice Coil Motor product is functioning properly, including maintenance, repair, and replacement. We also provide installation and configuration assistance, as well as product training and updates.
Our technical support team is available to answer your questions, provide solutions, and help you maximize the performance of your product. We are committed to providing the highest level of customer service and satisfaction.
Packing and Shipping:
Packaging and Shipping
Rotary Voice Coil Motors are packaged and shipped to ensure that they arrive in perfect condition. Each unit is carefully inspected and tested for quality assurance before being securely packaged in an appropriate box or envelope.
The packaging material used for the Rotary Voice Coil Motors is designed to allow the product to be shipped safely, while also providing a high level of protection against physical damage. The packing material is also designed to protect the product against moisture, dust, and other environmental elements.
The Rotary Voice Coil Motors are carefully packaged and shipped with a tracking number and insurance to ensure that they arrive in perfect condition. The tracking number provided makes it easy to track the product and track its progress to its final destination.
