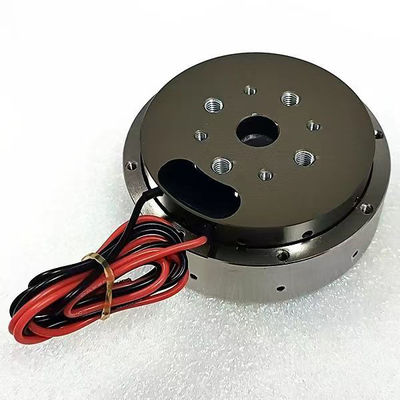

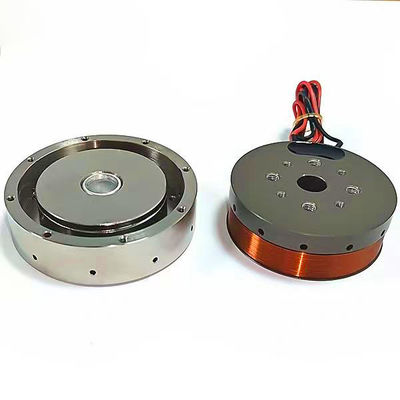

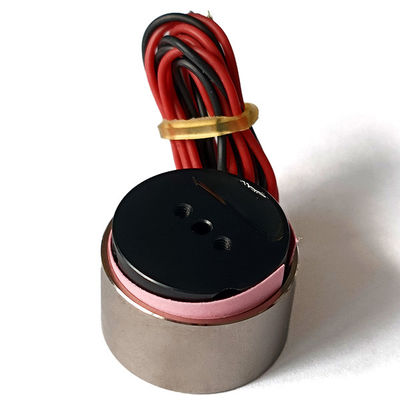

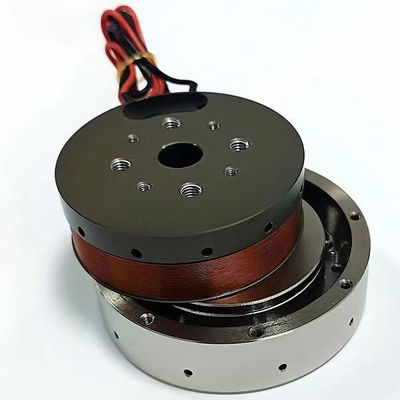

High Acceleration Micro Cylindrical Voice Coil Motor Direct Drive Motor Used In Robots
| Place of Origin | china,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | CE, ISO9001 |
| Model Number | VCAR Series |
| Minimum Order Quantity | 1PCS |
| Price | $143 |
| Packaging Details | Carton Packaging etc. |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Package | Carton Packaging | Stroke | Short |
|---|---|---|---|
| Current | Low | Batch Number | YET-YQDJ13 |
| Power | 2500N | Port | Shanghai Port |
| Durability | High | Positioning Accuracy | High |
| Type | Linear Motor | Performance | High |
| Highlight | Robots Micro Cylindrical Voice Coil Motor,High Acceleration Cylindrical Voice Coil Motor,Direct Drive Cylindrical Voice Coil Motor |
||
Product Description
Product Description:
The cylindrical voice coil motor is an advanced electromechanical integration equipment, with a design principle different from traditional motors, mainly used in the field of precision drive. The name of voice coil motor comes from its working principle, which is to generate torque through the action of current in the magnetic field, driving the "voice coil" inside the motor to move in a straight line.
The cylindrical voice coil motor has advantages such as fast response speed, high accuracy, no need for traditional mechanical transmission devices, and silent operation.
The application range of voice coil motors is very wide. For example, in robots in the United States, cylindrical voice coil motors are usually used in actuator systems and positioning systems. In precise positioning and control, cylindrical voice coil motors have high precision and responsiveness, and can be used in robot positioning systems to precisely control the position and posture of robots, enabling them to perform complex tasks.
Due to the fast response characteristics of cylindrical voice coil motors in high-speed motion, they are suitable for high-speed moving components of robots, such as joints and arms.
Cylindrical voice coil motors typically operate very quietly, making them particularly suitable for robot applications that require low-noise operations, such as surgical robots in the medical field.
It also plays a role in high efficiency: cylindrical voice coil motors usually have high energy conversion efficiency, which means they can complete more work with less energy, which is particularly important for robot systems that require long-term operation.
In precise force control, cylindrical voice coil motors can also precisely control the output force and torque, making them suitable for applications that require precise force application to operating objects, such as in assembly operations in manufacturing.
In summary, cylindrical voice coil motors play an important role in the field of precision drives due to their unique design and excellent performance, and are one of the indispensable key components in modern automation and high-tech industries. The cylindrical voice coil motor plays a crucial role in robots in the United States, providing precise position control, high-speed motion, low-noise operation, and efficient energy conversion, thereby promoting the development and application of robotics technology.
Features:
- Product Name: Cylindrical Voice Coil Motor
- Motor Type: Cylindrical Motor, Voice Coil Motor, Permanent magnet cylindrical motor
- Efficiency: High Efficiency
- Size: Small Size
- Life: Long Life
- Performance:High performance
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter (mm) | The Length (mm) |
| VCAR0001-0064-00A | 0.88 | 0.28 | 6.4 | 6.9 | 0.29 | 3 | 9.5 | 17.7 |
| VCAR0001-0010-00A | 0.73 | 0.42 | 1 | 4.8 | 0.6 | 2.7 | 24 | 11.2 |
| VCAR00025-0127-00A | 2.55 | 0.81 | 12.7 | 11.6 | 0.77 | .6.6 | 12.7 | 24 |
| VCAR0006-0039-00A | 6.2 | 1.9 | 3.9 | 6.6 | 1.12 | 7.9 | 20 | 17.2 |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 15.7 | 3.57 | 8.2 | 25 | 18.2 |
| VCAR0007-0040-00A | 7.2 | 2.4 | 4 | 7.5 | 1.88 | 7 | 14.2 | 23 |
| VCAR0007-0064-00A | 7.8 | 2.5 | 6.4 | 9.9 | 1.5 | 7.2 | 19.1 | 23.8 |
| VCAR0007-0127-00A | 7.1 | 2.3 | 12.7 | 12.8 | 1.6 | 11.4 | 19.1 | 27 |
| VCAR0011-0050-00A | 11.4 | 2.1 | 5 | 11.8 | 3 | 11.2 | 24 | 17.2 |
| VCAR0011-0100-00A | 10.5 | 2.9 | 10 | 43.8 | 3.5 | 20 | 31 | 26.8 |
| VCAR0013-0030-00A | 13 | 3.5 | 3 | 16 | 3.5 | 12 | 25 | 21 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | 24.7 |
| VCAR0014-0250-00A | 14 | 4.5 | 25 | 26.5 | 3.9 | 35 | 25.4 | 44.2 |
| VCAR0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | 25.6 |
| VCAR0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | 35 |
| VCAR0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | 75.7 |
| VCAR0025-0630-00A | 25.3 | 8 | 63 | 50.6 | 5 | 68 | 31.8 | 83.1 |
| VCAR0030-0150-00A | 29.4 | 4.73 | 15 | 40.5 | 7.4 | 27 | 30 | 31 |
| VCAR0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | 41.7 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | 26.7 |
| VCAR0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | 72 |
| VCAR0035-0090-00A | 35 | 11 | 9 | 26.4 | 9 | 33 | 25.4 | 44.3 |
| VCAR0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | 67 |
| VCAR0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | 21.2 |
| VCAR0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | 22 |
| VCAR0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | 35.9 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | 51.3 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | 53.7 |
| VCAR0075-0200-00A | 75 | 30 | 20 | 26.2 | 15.2 | 65 | 70 | 38.7 |
| VCAR0080-0129-00A | 80 | 35 | 12.9 | 27.7 | 18 | 149 | 49 | 53.8 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | 34.9 |
| VCAR0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | 110 |
| VCAR0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | 40.4 |
| VCAR0110-0380-00A | 110 | 37.4 | 38 | 23.2 | 9 | 150 | 60.4 | 60.4 |
| VCAR0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | 27.5 |
| VCAR0115-0065-00A | 115 | 30.1 | 6.5 | 35 | 17.3 | 52 | 40 | 58 |
| VCAR0130-0310-00A | 130 | 40 | 31 | 30.4 | 20.5 | 280 | 75.6 | 56.5 |
| VCAR0140-0150-00A | 140 | 42.2 | 15 | 33.4 | 26.6 | 80 | 53 | 53.7 |
| VCAR0210-0254-00A | 210 | 66.2 | 25.4 | 56.6 | 28 | 230 | 43.7 | 111.8 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | 64 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | 109.1 |
| VCAR0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | 136.9 |
| VCAR0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | 91 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | 110 |
| VCAR0436-0373-00A | 436 | 142.6 | 37.3 | 38 | 29.8 | 1050 | 76 | 163 |
| VCAR0980-0249-00A | 980 | 605 | 24.9 | 41.5 | 104 | 1426 | 126 | 134.5 |
| VCAR1351-0310-00A | 1351 | 376.8 | 31 | 73.5 | 68 | 1071 | 110 | 143.7 |
Applications:
The cylindrical voice coil motor is a widely used type of motor, which has a certain degree of application worldwide. The cylindrical voice coil motor is widely used in many industries, mainly including:
Automotive industry: Cylindrical voice coil motors can be used for controlling components such as car seat adjustments, door locks, and the driving system of electric vehicles.
Household appliance industry: Cylindrical voice coil motors can be used as electric components in air conditioning damper control, washing machines, dryers, dishwashers, and other household appliances.
Medical equipment industry: In medical equipment, cylindrical voice coil motors can be used to control the adjustment of medical beds and operating tables.
In the aerospace field, cylindrical voice coil motors are used for controlling components such as aircraft seats, cabin doors, and flaps.
Robotics and Automation: In industrial robots and automation systems, cylindrical voice coil motors can be used for actuators and positioning systems.
Office equipment: Transmission and adjustment components in equipment such as printers, copiers, etc.
In many countries and emerging economies, cylindrical voice coil motors are also an important market for application.
Customization:
Brand Name: SUPT MOTION
Model Number: VCAR Series
Place of Origin: Jiangsu, China
Certification:CE, ISO9001
Minimum Order Quantity: ≥1
Price: $143
Packaging Details: Carton Packaging etc
Delivery Time: 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated
Payment Terms: T/T
Supply Ability: Interview
Noise: Low Noise
Performance:High performance
Size: Small Size
Efficiency: High Efficiency
Life: Long Life
This Cylindrical Voice Coil Motor is designed with precision and is very suitable for mechanical equipment that requires quiet operation and fast response. The cylindrical voice coil motor has high accuracy and efficiency, allowing for precise control of position and speed. It is compact and easy to integrate into your project, ensuring a seamless and powerful user experience.
Support and Services:
Our voice coil motors are designed to provide reliable and consistent performance for a wide range of applications. To ensure the best experience of our products, we provide comprehensive technical support and services as follows:
Technical Support: Our knowledgeable technical support team can help you solve any problems you may encounter when using our voice coil motor. They can provide expert advice on product selection, installation, and troubleshooting.
Warranty service: We provide strong warranty for the quality of voice coil motors. If you encounter any material or process defects during normal use, we will repair or replace the product according to our warranty terms and conditions.
Replacement parts: If you need to replace the parts of the voice coil motor, we will keep a comprehensive inventory of parts to ensure fast and efficient service. Our support team can help you identify the necessary parts and guide you through the ordering process.
Please note that our technical support and services aim to provide assistance during standard working hours. However, we strive to resolve key issues as soon as possible and understand the importance of minimizing downtime during operations.
We are committed to ensuring that your vibration motor receives the highest level of support and continuously improving our services to meet your ever-changing needs.
Packing and Shipping:
Product packaging for voice coil motors:
Our voice coil motor is securely packaged to ensure delivery to you under perfect working conditions. Each motor is individually packaged in anti-static materials to prevent static discharge during transportation. Then place the motor in a buffer box with a foam insert to provide additional protection against impact during transportation. The box is sealed with heavy-duty tape and clearly marked as fragile to ensure careful handling by the shipping carrier.
Transportation of voice coil motors:
We are very careful when transporting voice coil motors to ensure timely and safe delivery. The order is sent through our trusted logistics partners who specialize in handling electronic components. Once your order leaves our factory, we will provide you with shipping information including tracking details. Please note that the shipping time may vary depending on your location and the shipping option selected at checkout. We suggest regularly checking tracking information to stay up-to-date on the delivery status of orders.
FAQ:
Q1: What brand are the Cylindrical Voice Coil Motor and where are they manufactured?
A1: The brand of the Cylindrical Voice Coil Motor is SUPT MOTION, and they are manufactured in Jiangsu, China.
Q2: What is the model number for these Cylindrical Voice Coil Motor?
A2: The model number for the Cylindrical Voice Coil Motor is the VCAR Series.
Q3: Do these Cylindrical Voice Coil Motor come with any certifications?
A3: Yes, the Cylindrical Voice Coil Motor come with a CE and ISO9001 certification.
Q4: What is the minimum order quantity for the Cylindrical Voice Coil Motor and what is their price?
A4: The minimum order quantity for the Cylindrical Voice Coil Motor is 1 unit, and the price is $143 per unit.
Q5: What are the payment terms for purchasing the VCAR Series Cylindrical Voice Coil Motor?
A5: The payment terms for purchasing the VCAR Series Cylindrical Voice Coil Motor are T/T (Telegraphic Transfer).
Q6: What are the packaging and delivery details for the VCAR Series Cylindrical Voice Coil Motor?
A6: The VCAR Series Cylindrical Voice Coil Motor are packaged in carton packaging. The delivery time ranges 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated.
