High Response VCM Voice Coil Motor High Positioning Accuracy Voice Coil Actuator

  • High Response VCM Voice Coil Motor High Positioning Accuracy Voice Coil Actuator
  • High Response VCM Voice Coil Motor High Positioning Accuracy Voice Coil Actuator
  • High Response VCM Voice Coil Motor High Positioning Accuracy Voice Coil Actuator
  • High Response VCM Voice Coil Motor High Positioning Accuracy Voice Coil Actuator
Place of Origin Suzhou, china
Brand Name SUPT MOTION
Certification ISO9001
Model Number VCAR series
Minimum Order Quantity 1PCS
Price $95-$120
Packaging Details carton packaging ect.
Delivery Time sample order 2-3 days,other 5-8 work days
Payment Terms T/T
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight Light Power 2500N
Voltage DC RPM 100HZ(RPM)
BATCH Number YET-YQDJ13 Quantity 9999
Acceleration High Cost Low
Current 0.5A Durability High
Force High Noise Low
Positioning Accuracy High Product Name Vcm Voice Coil Motor
Resolution High Size Small
Speed High Stability High
Temperature Range Wide
Highlight

High Response VCM Voice Coil Motor

,

2500N High Response Voice Coil Actuator

,

High Positioning Accuracy Voice Coil Actuator
Leave a Message
Product Description
Low Cost Vcm Voice Coil Motor With High Positioning Accuracy High Response


Product Description:

The VCM (Voice Coil Motor) excels with its dual advantage of high-precision positioning and cost-effectiveness. This motor achieves superior accuracy through meticulous design, reducing mechanical play for precise positioning. Its lightweight construction and optimized electromagnetic interaction enable rapid response, ensuring swift and accurate adjustments. Remarkably, this level of precision is attainable without compromising on cost-efficiency. The VCM's blend of accuracy and affordability makes it an attractive choice for applications demanding both performance and economy.

This motor's high positioning precision is achieved through meticulous design and engineering. Its coil and magnet arrangement, coupled with precise manufacturing techniques, ensure minimal play or backlash during movement. This means that when the motor receives a command to move, it responds with accuracy, translating into precise positioning of the attached load.

Features:



  • Product Name: Vcm Voice Coil Motor
  • Motor Type: Voice Coil Motor
  • Positioning Accuracy: High
  • Current: Low
  • Speed: High
  • Cost: Low
  • Voltage Controlled Motor
  • Linear Movement Motor
  • RPM100HZ(RPM)

Technical Parameters:

Specifications Vcm Voice Coil Motor
Stroke Short
Speed High
Cost Low
Resolution High
Noise Low
Positioning Accuracy High
Current Low
Motor Type Cylindrical Voice Coil Motor
Weight Light
Size Small
Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter (mm) The Length
(mm)
VCAR0001-0064-00A 0.88 0.28 6.4 6.9 0.29 3 9.5 17.7
VCAR0001-0010-00A 0.73 0.42 1 4.8 0.6 2.7 24 11.2
VCAR00025-0127-00A 2.55 0.81 12.7 11.6 0.77 .6.6 12.7 24
VCAR0006-0039-00A 6.2 1.9 3.9 6.6 1.12 7.9 20 17.2
VCAR0006-0050-00A 6.2 2.6 5 15.7 3.57 8.2 25 18.2
VCAR0007-0040-00A 7.2 2.4 4 7.5 1.88 7 14.2 23
VCAR0007-0064-00A 7.8 2.5 6.4 9.9 1.5 7.2 19.1 23.8
VCAR0007-0127-00A 7.1 2.3 12.7 12.8 1.6 11.4 19.1 27
VCAR0011-0050-00A 11.4 2.1 5 11.8 3 11.2 24 17.2
VCAR0011-0100-00A 10.5 2.9 10 43.8 3.5 20 31 26.8
VCAR0013-0030-00A 13 3.5 3 16 3.5 12 25 21
VCAR0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 24.7
VCAR0014-0250-00A 14 4.5 25 26.5 3.9 35 25.4 44.2
VCAR0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 25.6
VCAR0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 35
VCAR0022-0448-00A 22 11.4 44.8 14.3 4 52 48 75.7
VCAR0025-0630-00A 25.3 8 63 50.6 5 68 31.8 83.1
VCAR0030-0150-00A 29.4 4.73 15 40.5 7.4 27 30 31
VCAR0032-0050-00A 32 8.9 5 29.3 7.1 48 40 41.7
VCAR0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 26.7
VCAR0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 72

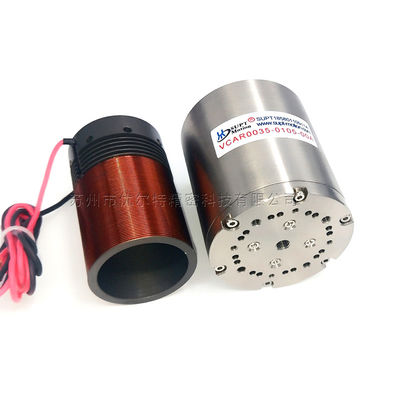

VCAR0035-0090-00A 35 11 9 26.4 9 33 25.4 44.3
VCAR0035-0105-00A 35 15.6 10.5 11.9 5 91 50 67
VCAR0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 21.2
VCAR0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 22
VCAR0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 35.9
VCAR0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 51.3

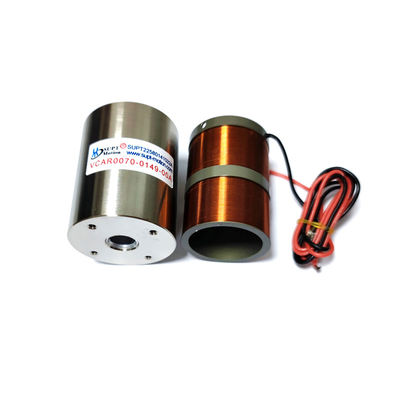

VCAR0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 53.7
VCAR0075-0200-00A 75 30 20 26.2 15.2 65 70 38.7
VCAR0080-0129-00A 80 35 12.9 27.7 18 149 49 53.8
VCAR0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 34.9
VCAR0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 110
VCAR0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 40.4
VCAR0110-0380-00A 110 37.4 38 23.2 9 150 60.4 60.4
VCAR0113-0089-00A 113 35 8.9 31 17.5 125 73 27.5
VCAR0115-0065-00A 115 30.1 6.5 35 17.3 52 40 58
VCAR0130-0310-00A 130 40 31 30.4 20.5 280 75.6 56.5
VCAR0140-0150-00A 140 42.2 15 33.4 26.6 80 53 53.7
VCAR0210-0254-00A 210 66.2 25.4 56.6 28 230 43.7 111.8

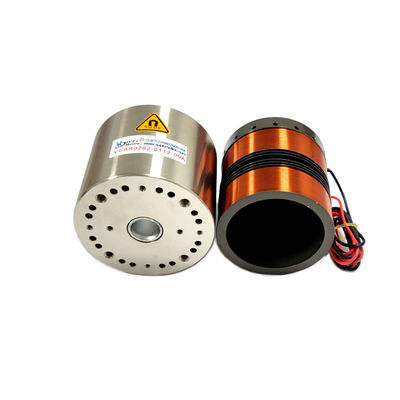

VCAR0262-0112-00A 262 111 11.2 35.1 41 285 71 64
VCAR0262-0249-00A 262 112 24.9 28.2 26 785 66 109.1
VCAR0294-0498-00A 294 56.8 49.8 114 24.5 685 93 136.9
VCAR0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 91
VCAR0436-0250-00A 436 167 25 31.6 37.2 775 78.4 110
VCAR0436-0373-00A 436 142.6 37.3 38 29.8 1050 76 163
VCAR0980-0249-00A 980 605 24.9 41.5 104 1426 126 134.5
VCAR1351-0310-00A 1351 376.8 31 73.5 68 1071 110 143.7

Applications:

The main application of a voice coil motor:
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics.

2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry

injection system.
3.Micro Machine industry:Feed systems, micro drilling, precision stamping.
4.Vibration System:Shaking table, vibration platform.
5.Medical field:Micro-injection system, respiratory equipment, testing equipment.
6.Aviation Technology:Flight control system, pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery.

High Response VCM Voice Coil Motor High Positioning Accuracy Voice Coil Actuator 0

Customization:

SUPT MOTION VCAR Series Voice Coil Motor
  • Brand Name: SUPT MOTION
  • Model Number: VCAR Series
  • Place of Origin: Suzhou, china
  • Certification: ISO9001
  • Minimum Order Quantity: ≥1
  • Price: $95-120
  • Packaging Details: Carton Packaging
  • Delivery Time: General 5-7 days delivery, fast 3-5 days, bulk to be negotiated
  • Payment Terms: T/T
  • Supply Ability: Interview
  • Stroke: Short
  • Resolution: High
  • Motor Type: Cylindrical Voice Coil Motor, Voice Coil Motor, Linear Actuator Motor
  • Force: High
  • weight: Low

Support and Services:

Vcm Voice Coil Motor Technical Support and Service

We are dedicated to providing our customers with the highest quality Vcm Voice Coil Motor products and services. Our knowledgeable technical support team is available to answer any questions you may have about our products and provide helpful guidance for installation and troubleshooting. We also offer a variety of services to ensure that your Vcm Voice Coil Motor is running optimally, including installation, maintenance, and repair.

For questions or concerns regarding installation, maintenance, or repair, please contact our technical support team.

Packing and Shipping:

Packaging and Shipping for Vcm Voice Coil Motor

Vcm Voice Coil Motor will be shipped with appropriate packaging to ensure the safety of the product.

The standard packaging for Vcm Voice Coil Motor includes:

  • Delivery box with protective foam
  • Instruction manual
  • Protective wrapping paper
  • Product warranty paperwork

Please contact us if you need specific packaging for your Vcm Voice Coil Motor.

FAQ:

Q1:What is the Brand Name of Vcm Voice Coil Motor?

A1:The Brand Name of Vcm Voice Coil Motor is SUPT MOTION.

Q2:What is the Model Number of Vcm Voice Coil Motor?

A2:The Model Number of Vcm Voice Coil Motor is VCAR Series.

Q3:Where is the Place of Origin of Vcm Voice Coil Motor?

A3:The Place of Origin of Vcm Voice Coil Motor is China Suzhou.

Q4:What is the Minimum Order Quantity of Vcm Voice Coil Motor?

A4:The Minimum Order Quantity of Vcm Voice Coil Motor is ≥1.

Q5:What is the Price of Vcm Voice Coil Motor?

A5: Different models of motors, different quantities, different prices.
