High Speed Linear Motor For Two Dimensional Mirror Mini Linear Actuator Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce |
| Model Number | VCAR0044-0040-00A |
| Minimum Order Quantity | ≥1 |
| Price | $110.00/pieces |
| Packaging Details | carton & wooden box 3d printer motor |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3years | Usage | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Respirator, Microscope, Optics |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 4.9A | Efficiency | IE 1 |
| Peak Force(N) | 44 | Maximum Travel(mm) | 4 |
| 3d Printer Motor(V) | 18.3 | Weight Rotor(kg) | 45 |
| Stator Dia(mm) | 53 | Continuous Force(N) | 16.3 |
| Highlight | High Speed Micro Linear Motor 44N,Micro Linear Motor For Two Dimensional Mirror,Mini Linear Actuator Motor 44N |
||
Product Description

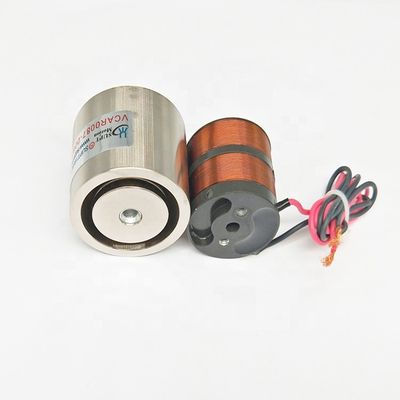

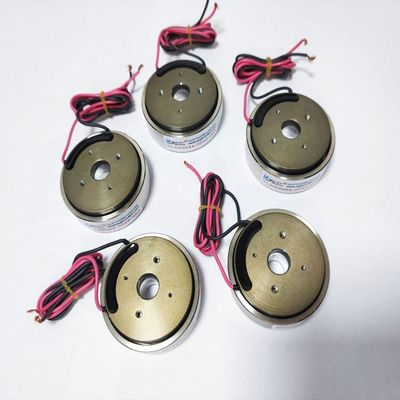

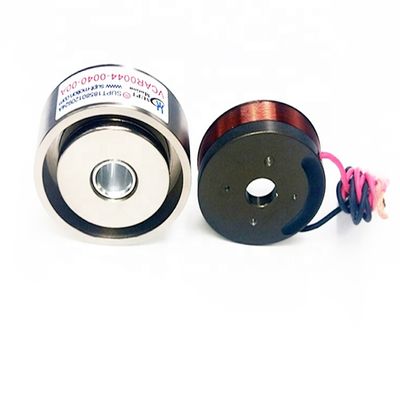

Micro Linear Actuator Motor For Two-Dimensional Mirror High Speed
Product Description:
Micro voice coil motors find a remarkable application in two-dimensional (2D) mirror systems, enabling precise and rapid mirror positioning for various optical and laser systems. These miniature motors offer exceptional control and accuracy, making them ideal for steering laser beams, adjusting optical paths, and facilitating communication systems.
In a 2D mirror setup, micro voice coil motors are integrated with the mirror structure to enable controlled angular movements in two orthogonal directions. This precise motion allows for accurate manipulation of light beams, enhancing the performance of optical systems.
The mirror assembly consists of the mirror itself and the micro voice coil motor. The mirror is typically a lightweight, reflective surface that can rotate around two perpendicular axes. The micro voice coil motor, compact in size yet powerful, is attached to the mirror's frame. The motor's coil is positioned within the magnetic field, creating the necessary forces to induce mirror movement.
For example, in laser systems, micro voice coil motors play a vital role in beam steering. As the motor receives control signals, it adjusts the mirror's orientation, effectively changing the laser beam's direction. This technology finds applications in laser show projectors, laser communication systems, and even laser-based manufacturing processes, where precise control of laser beams is essential.
In the realm of microscopy, micro voice coil motors integrated with 2D mirrors contribute to advanced imaging techniques. By manipulating the mirror's angles with nanometer-scale precision, researchers can dynamically adjust the focus and illumination angles, resulting in improved image clarity and depth.
The installation and operation of micro voice coil motors in 2D mirror systems involve precision engineering. Engineers meticulously design the mechanical structure to ensure minimal friction and backlash, crucial for accurate mirror positioning. The motor's electrical connections are integrated with control electronics that interpret commands and generate the appropriate currents to drive the motor.
Features:
- Product Name: Vcm Voice Coil Motor
- Motor Type: Micro Motor
- Warranty:3years
- Stroke: Short
- Weight: Light
- Resolution: High
- Positioning Accuracy: High
- Coil Voice Motor
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter (mm) | The Length (mm) |
| VCAR0001-0064-00A | 0.88 | 0.28 | 6.4 | 6.9 | 0.29 | 3 | 9.5 | 17.7 |
| VCAR0001-0010-00A | 0.73 | 0.42 | 1 | 4.8 | 0.6 | 2.7 | 24 | 11.2 |
| VCAR00025-0127-00A | 2.55 | 0.81 | 12.7 | 11.6 | 0.77 | .6.6 | 12.7 | 24 |
| VCAR0006-0039-00A | 6.2 | 1.9 | 3.9 | 6.6 | 1.12 | 7.9 | 20 | 17.2 |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 15.7 | 3.57 | 8.2 | 25 | 18.2 |
| VCAR0007-0040-00A | 7.2 | 2.4 | 4 | 7.5 | 1.88 | 7 | 14.2 | 23 |
| VCAR0007-0064-00A | 7.8 | 2.5 | 6.4 | 9.9 | 1.5 | 7.2 | 19.1 | 23.8 |
| VCAR0007-0127-00A | 7.1 | 2.3 | 12.7 | 12.8 | 1.6 | 11.4 | 19.1 | 27 |
| VCAR0011-0050-00A | 11.4 | 2.1 | 5 | 11.8 | 3 | 11.2 | 24 | 17.2 |
| VCAR0011-0100-00A | 10.5 | 2.9 | 10 | 43.8 | 3.5 | 20 | 31 | 26.8 |
| VCAR0013-0030-00A | 13 | 3.5 | 3 | 16 | 3.5 | 12 | 25 | 21 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | 24.7 |
| VCAR0014-0250-00A | 14 | 4.5 | 25 | 26.5 | 3.9 | 35 | 25.4 | 44.2 |
| VCAR0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | 25.6 |
| VCAR0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | 35 |
| VCAR0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | 75.7 |
| VCAR0025-0630-00A | 25.3 | 8 | 63 | 50.6 | 5 | 68 | 31.8 | 83.1 |
| VCAR0030-0150-00A | 29.4 | 4.73 | 15 | 40.5 | 7.4 | 27 | 30 | 31 |
| VCAR0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | 41.7 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | 26.7 |
| VCAR0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | 72 |
| VCAR0035-0090-00A | 35 | 11 | 9 | 26.4 | 9 | 33 | 25.4 | 44.3 |
| VCAR0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | 67 |
| VCAR0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | 21.2 |
| VCAR0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | 22 |
| VCAR0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | 35.9 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | 51.3 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | 53.7 |
| VCAR0075-0200-00A | 75 | 30 | 20 | 26.2 | 15.2 | 65 | 70 | 38.7 |
| VCAR0080-0129-00A | 80 | 35 | 12.9 | 27.7 | 18 | 149 | 49 | 53.8 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | 34.9 |
| VCAR0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | 110 |
| VCAR0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | 40.4 |
| VCAR0110-0380-00A | 110 | 37.4 | 38 | 23.2 | 9 | 150 | 60.4 | 60.4 |
| VCAR0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | 27.5 |
| VCAR0115-0065-00A | 115 | 30.1 | 6.5 | 35 | 17.3 | 52 | 40 | 58 |
| VCAR0130-0310-00A | 130 | 40 | 31 | 30.4 | 20.5 | 280 | 75.6 | 56.5 |
| VCAR0140-0150-00A | 140 | 42.2 | 15 | 33.4 | 26.6 | 80 | 53 | 53.7 |
| VCAR0210-0254-00A | 210 | 66.2 | 25.4 | 56.6 | 28 | 230 | 43.7 | 111.8 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | 64 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | 109.1 |
| VCAR0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | 136.9 |
| VCAR0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | 91 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | 110 |
| VCAR0436-0373-00A | 436 | 142.6 | 37.3 | 38 | 29.8 | 1050 | 76 | 163 |
| VCAR0980-0249-00A | 980 | 605 | 24.9 | 41.5 | 104 | 1426 | 126 | 134.5 |
| VCAR1351-0310-00A | 1351 | 376.8 | 31 | 73.5 | 68 | 1071 | 110 | 143.7 |
Applications:
Voice Coil Motor is a special type of direct drive Motor. The utility model has the advantages of simple structure, small volume, high speed, high acceleration, fast response, etc. . In recent years, with the improvement of high-speed and high-precision positioning system and the rapid development of voice coil motor technology, voice coil motor is not only widely used in precision positioning systems such as disk, laser disc positioning, etc. , in many different forms of high-acceleration, high-frequency excitation has also been widely used. Such as: Lens positioning in optical system, multi-coordinate positioning platform in mechanic county, precision electro.
