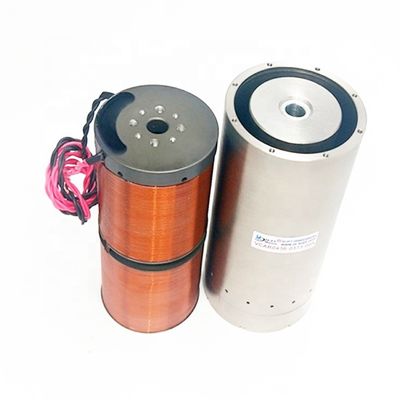

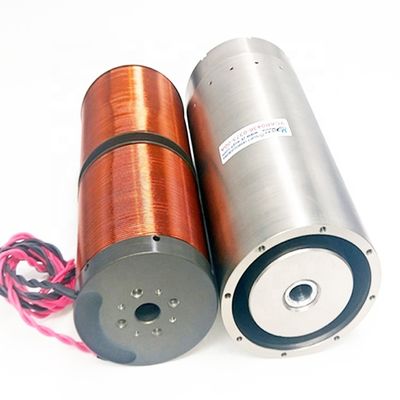

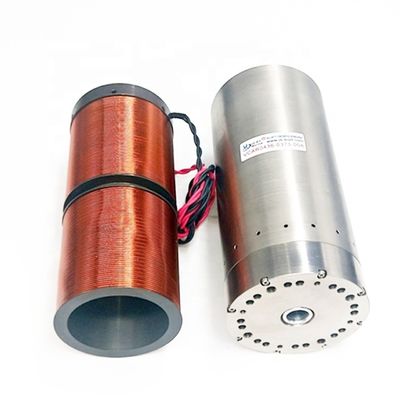

436N High Speed Micro Voice Coil Actuator For Encoder Voice Coil Motors

Product Description:

Voice coil motors are employed in encoders for precise motion sensing and position feedback. In this application, the voice coil motor acts as a movable element within the encoder assembly. As the motor moves, it generates a varying electrical signal that corresponds to its position.

The process begins with the voice coil motor being attached to a mechanism whose position needs to be monitored. The motor's coil is placed within the magnetic field of the encoder. When an external force, such as a user input or an automated control, causes the motor to move, the coil's position within the magnetic field changes.

As the coil moves, it cuts through the magnetic lines of force, inducing an electrical voltage. This voltage is proportional to the velocity and direction of the coil's movement. This phenomenon is known as electromagnetic induction. The varying voltage generated by the coil is captured by the encoder's electronics.

Features:

• Product Name: Vcm Voice Coil Motor
• Motor Type: Micro Motor
• Stroke: Short
• Weight: Light
• Resolution: High
• Positioning Accuracy: High
• Speed(RPM): High Speed

Technical Parameters:

Applications:

The VCAR series cylindrical voice coil motor, because it can provide high thrust, high speed, high accuracy, so it is widely used. This type of motor can produce 0.7 n to 1000N of powerful power, so it occupies 80% or more of the market, and its travel is generally less than 50mm. The motor is mainly used in medical, semiconductor, aviation, automotive and other fields, including valve brakes, short-distance precise position control, small precision replacement measuring instrument, vibration platform and active vibration damping system and many other aspects. The market is focused on the medical, semiconductor, aerospace and automation industries.
