Low Noise Mini Electric Motor Unite 12 Volt Electric Motor Light Weight
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce, ISO9001 |
| Model Number | VCAR0035-0105-00A |
| Minimum Order Quantity | ≥1 |
| Price | $180.00 - $190.00/pieces |
| Packaging Details | in carton and as customer requirements<br>12V mini motor |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 3000 Piece/Pieces per Month 12V mini motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Variable Speed |
| Continuous Current(A) | Current | Efficiency | IE 1 |
| Product Name | 12V Mini Electric Motor | Name | Suzhou Voice Coil Motor |
| Rated Voltage | 12V | Size | 50mm |
| Color | Silver/Black | Packing | In Carton |
| Port | Shanghai Port | ||
| Highlight | Low Noise Mini Electric Motor 50mm,12 Volt Electric Motor Light Weight,12 Volt Electric Motor 50mm |
||
Product Description
Low Noise Suzhou Unite 12V Mini Electric Motor Light Weight Small Size
Product Description
Voice coil motors (VCMs) are compact and low-noise 12V motors that are widely used in various applications. These motors consist of a coil of wire, also known as the voice coil, which is suspended within a magnetic field. When current is applied to the voice coil, it generates a magnetic field that interacts with the fixed magnetic field, causing the coil to move.
One of the key advantages of VCMs is their low-noise operation. The combination of a small size and low power consumption results in minimal vibration and noise, making them ideal for use in devices where quiet operation is crucial, such as scanners, mobile phones, and disk drives. This makes VCMs particularly suitable for applications where noise reduction is a major concern.
Furthermore, VCMs offer precise control and high response rates. The voice coil can be accurately positioned using a closed-loop feedback system, ensuring precise linear motion. This enables VCMs to perform tasks that require high accuracy and fast response times, such as focusing mechanisms in cameras and positioning systems.
The main application of a voice coil motor:
1.Semiconductor industry:Writting,cutting,drilling,transportation systems,welding,robotics.
2.Valve operation in the field:Type metering valves,pressure test systems,pneumatic valve chemistry injection system.
3.Micro machine industry:Feed systems,micro drilling,precision stamping.
4.Vibration system:Shaking table,vibration platform.
5.Medical filed:Micro-injection system,respiratory equipment,testing equipment.
6.Aviation Technology:Flight control system,pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment,dispenser,test equipment,textile machinery.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter (mm) | The Length (mm) |
| VCAR0001-0064-00A | 0.88 | 0.28 | 6.4 | 6.9 | 0.29 | 3 | 9.5 | 17.7 |
| VCAR0001-0010-00A | 0.73 | 0.42 | 1 | 4.8 | 0.6 | 2.7 | 24 | 11.2 |
| VCAR00025-0127-00A | 2.55 | 0.81 | 12.7 | 11.6 | 0.77 | .6.6 | 12.7 | 24 |
| VCAR0006-0039-00A | 6.2 | 1.9 | 3.9 | 6.6 | 1.12 | 7.9 | 20 | 17.2 |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 15.7 | 3.57 | 8.2 | 25 | 18.2 |
| VCAR0007-0040-00A | 7.2 | 2.4 | 4 | 7.5 | 1.88 | 7 | 14.2 | 23 |
| VCAR0007-0064-00A | 7.8 | 2.5 | 6.4 | 9.9 | 1.5 | 7.2 | 19.1 | 23.8 |
| VCAR0007-0127-00A | 7.1 | 2.3 | 12.7 | 12.8 | 1.6 | 11.4 | 19.1 | 27 |
| VCAR0011-0050-00A | 11.4 | 2.1 | 5 | 11.8 | 3 | 11.2 | 24 | 17.2 |
| VCAR0011-0100-00A | 10.5 | 2.9 | 10 | 43.8 | 3.5 | 20 | 31 | 26.8 |
| VCAR0013-0030-00A | 13 | 3.5 | 3 | 16 | 3.5 | 12 | 25 | 21 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | 24.7 |
| VCAR0014-0250-00A | 14 | 4.5 | 25 | 26.5 | 3.9 | 35 | 25.4 | 44.2 |
| VCAR0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | 25.6 |
| VCAR0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | 35 |
| VCAR0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | 75.7 |
| VCAR0025-0630-00A | 25.3 | 8 | 63 | 50.6 | 5 | 68 | 31.8 | 83.1 |
| VCAR0030-0150-00A | 29.4 | 4.73 | 15 | 40.5 | 7.4 | 27 | 30 | 31 |
| VCAR0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | 41.7 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | 26.7 |
| VCAR0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | 72 |
| VCAR0035-0090-00A | 35 | 11 | 9 | 26.4 | 9 | 33 | 25.4 | 44.3 |

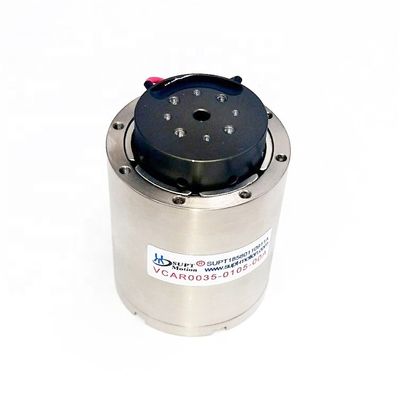

| VCAR0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | 67 |
| VCAR0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | 21.2 |
| VCAR0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | 22 |
| VCAR0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | 35.9 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | 51.3 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | 53.7 |
| VCAR0075-0200-00A | 75 | 30 | 20 | 26.2 | 15.2 | 65 | 70 | 38.7 |
| VCAR0080-0129-00A | 80 | 35 | 12.9 | 27.7 | 18 | 149 | 49 | 53.8 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | 34.9 |
| VCAR0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | 110 |
| VCAR0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | 40.4 |
| VCAR0110-0380-00A | 110 | 37.4 | 38 | 23.2 | 9 | 150 | 60.4 | 60.4 |
| VCAR0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | 27.5 |
| VCAR0115-0065-00A | 115 | 30.1 | 6.5 | 35 | 17.3 | 52 | 40 | 58 |
| VCAR0130-0310-00A | 130 | 40 | 31 | 30.4 | 20.5 | 280 | 75.6 | 56.5 |
| VCAR0140-0150-00A | 140 | 42.2 | 15 | 33.4 | 26.6 | 80 | 53 | 53.7 |
| VCAR0210-0254-00A | 210 | 66.2 | 25.4 | 56.6 | 28 | 230 | 43.7 | 111.8 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | 64 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | 109.1 |
| VCAR0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | 136.9 |
| VCAR0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | 91 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | 110 |
| VCAR0436-0373-00A | 436 | 142.6 | 37.3 | 38 | 29.8 | 1050 | 76 | 163 |
| VCAR0980-0249-00A | 980 | 605 | 24.9 | 41.5 | 104 | 1426 | 126 | 134.5 |
| VCAR1351-0310-00A | 1351 | 376.8 | 31 | 73.5 | 68 | 1071 | 110 | 143.7 |

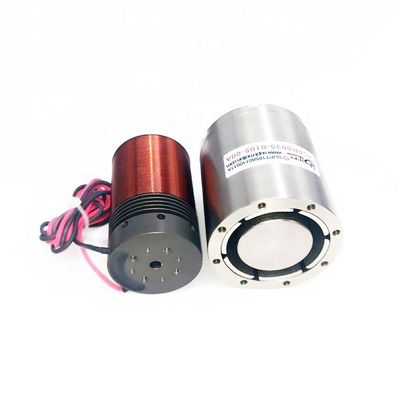

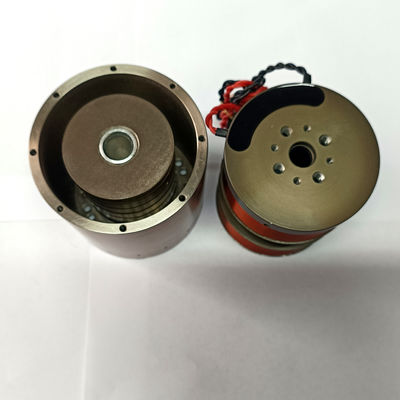

Detailed Images
Certifications
Our Company
Suzhou Unite Precision Technology Co,Ltd.(SUPT Motion)is an engineering and manufacturing company dedicated to providing Voice Coil Actuator linear motor and linear motor platform,SUPT Motion is to provide both a standard distribution product and also madium and high volume custom OEM solutions.The primary product is voice coil based linear and rotary actuator and brushless permantent magnet type linear motor.
The company has strong R&D capability perfect after sale service system.SUPT Motion is able to according to customer specific requirements design and produce voice coil motor linear motor and all kinds of linear motion platform.With many years of experience,our international engineering and manufacturing staff is able to provide the most advanced technology and best quality product for the Asia,North America,Europe and the world varios areas of voice coil motor and linear motor customers and dealers.
The company is able to provide cost effective solution to you large OEM production requirement for you by being based in the manufacturing centers of Suzhou,we will continue to improve in technology strive for perfection in the quality.Adhering to the tenet of SUPT Motion Hight quality is our pursult,Customer satisfaction is our commitment.With our strict quality deparment and production deparment ensure that our high quality and inexpensive products motor more cost-effective to serve customers make it has strong competitiveness.
