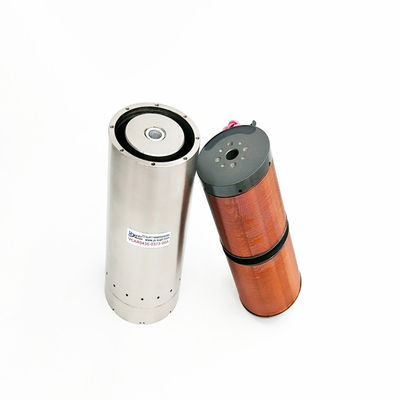

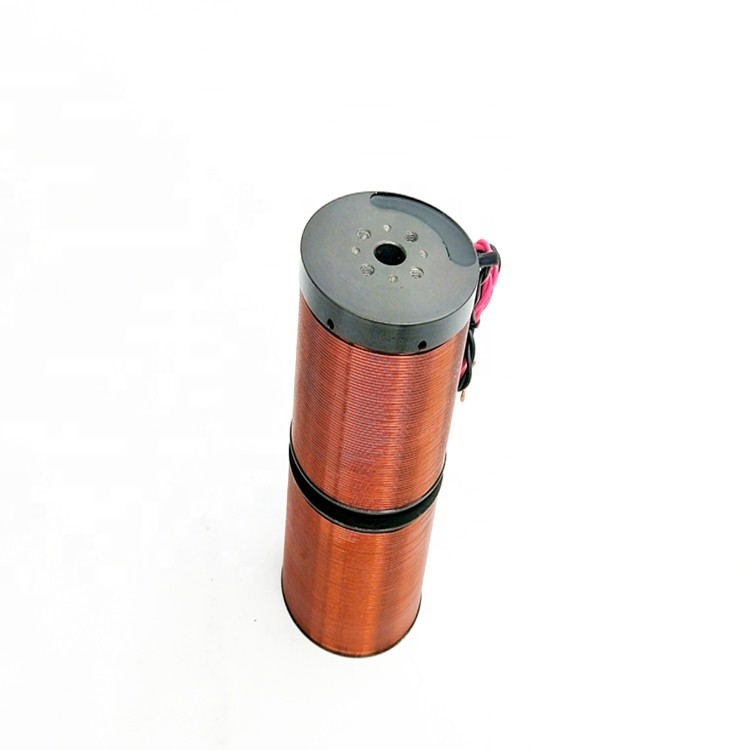

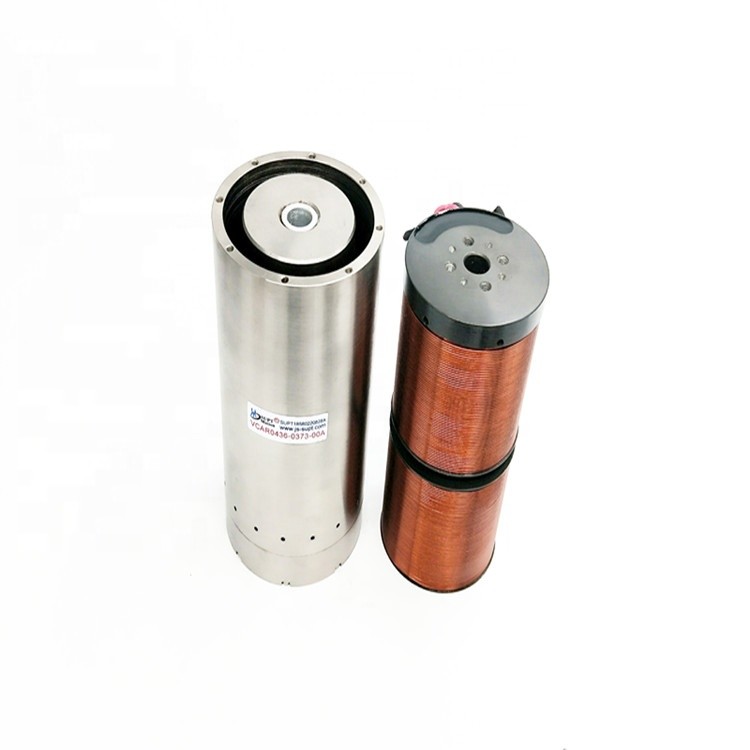

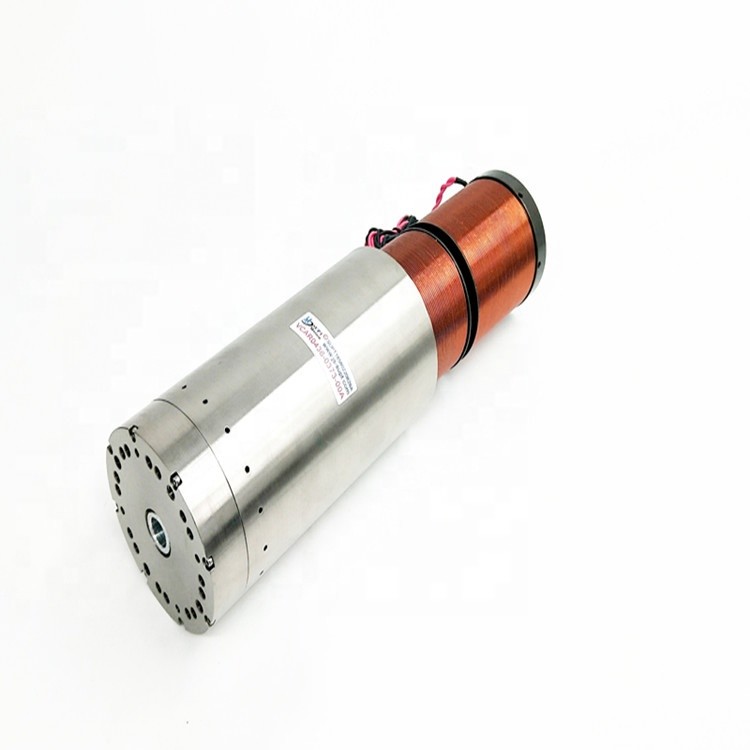

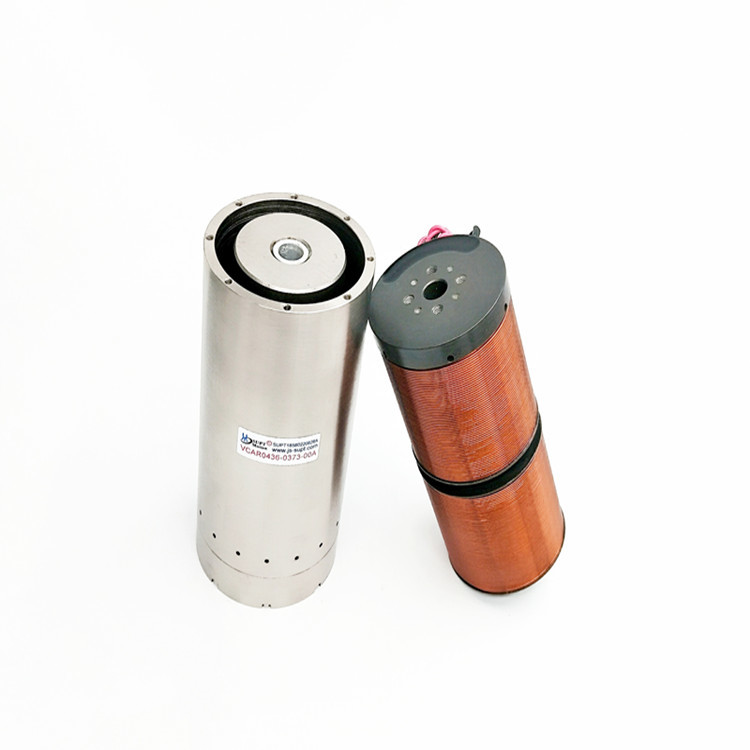

37mm Stroke Cylindrical VCM Voice Coil Actuator Miniature Voice Coil Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001 |
| Model Number | VCAR0436-0373-00A |
| Minimum Order Quantity | ≥1 |
| Price | $550.00/pieces |
| Packaging Details | carton & wooden box voice coil |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Microscope,Robot,Medical Ventilators,Optical Project,Laser Equipment |
|---|---|---|---|
| Type | Micro Motor | Construction | Permanent Magnet |
| Commutation | Brushless | Protect Feature | Totally Enclosed |
| Speed(RPM) | 20 | Continuous Current(A) | 2.6 |
| Efficiency | IE 1 | Peak Force(N) | 436 |
| Maximum Travel(mm) | 37.3 | Voice Coil Motor(V) | 38 |
| Weight Rotor(g) | 1040 | Stator Dia(mm) | 76 |
| Continuous Force(N) | 142.6 | ||
| Highlight | 50mm Stroke VCM Voice Coil Motor,50mm Stroke Miniature Voice Coil Actuator,Two Phrase Miniature Voice Coil Actuator |
||
Product Description
50mm Stroke Two-Phrase Voice Coil Motor Zero Magnetic Slot Effect
Product Description:
Characteristics of miniature voice coil motors and their applications in automation systems:
Miniature voice coil motors are characterized by small size, high power density, fast response time and precise positioning. Cylindrical vcm voice coil motors usually consist of a coil suspended between two permanent magnets, which form a magnetic field that interacts with the current passing through the coil.
One of the main uses of miniature voice coil motors is in robotics, where they can be used to precisely position and control robotic arms and manipulators. Miniature voice coil motors are also used to automate production processes, such as pick-and-place machines that require fast and precise movements. In the field of optics, miniature voice coil motors are used for high-speed focusing and zooming in cameras and telescope systems.
Also characterized by the zero-groove effect, cylindrical miniature voice coil motors are often used in areas where smooth and precise movements are required, such as semiconductor manufacturing, metrology and biomedical equipment. For example, in semiconductor manufacturing, the miniature voice coil motor can be used for wafer handling and alignment tasks. In metrology, miniature voice coil motors are used for precision measurement and scanning. In the biomedical field, vcm voice coil motors have a variety of applications, including laboratory automation and surgical positioning laser systems.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter (mm) | The Length (mm) |
| VCAR0001-0064-00A | 0.88 | 0.28 | 6.4 | 6.9 | 0.29 | 3 | 9.5 | 17.7 |
| VCAR0001-0010-00A | 0.73 | 0.42 | 1 | 4.8 | 0.6 | 2.7 | 24 | 11.2 |
| VCAR00025-0127-00A | 2.55 | 0.81 | 12.7 | 11.6 | 0.77 | .6.6 | 12.7 | 24 |
| VCAR0006-0039-00A | 6.2 | 1.9 | 3.9 | 6.6 | 1.12 | 7.9 | 20 | 17.2 |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 15.7 | 3.57 | 8.2 | 25 | 18.2 |
| VCAR0007-0040-00A | 7.2 | 2.4 | 4 | 7.5 | 1.88 | 7 | 14.2 | 23 |
| VCAR0007-0064-00A | 7.8 | 2.5 | 6.4 | 9.9 | 1.5 | 7.2 | 19.1 | 23.8 |
| VCAR0007-0127-00A | 7.1 | 2.3 | 12.7 | 12.8 | 1.6 | 11.4 | 19.1 | 27 |
| VCAR0011-0050-00A | 11.4 | 2.1 | 5 | 11.8 | 3 | 11.2 | 24 | 17.2 |
| VCAR0011-0100-00A | 10.5 | 2.9 | 10 | 43.8 | 3.5 | 20 | 31 | 26.8 |
| VCAR0013-0030-00A | 13 | 3.5 | 3 | 16 | 3.5 | 12 | 25 | 21 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | 24.7 |
| VCAR0014-0250-00A | 14 | 4.5 | 25 | 26.5 | 3.9 | 35 | 25.4 | 44.2 |
| VCAR0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | 25.6 |
| VCAR0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | 35 |
| VCAR0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | 75.7 |
| VCAR0025-0630-00A | 25.3 | 8 | 63 | 50.6 | 5 | 68 | 31.8 | 83.1 |
| VCAR0030-0150-00A | 29.4 | 4.73 | 15 | 40.5 | 7.4 | 27 | 30 | 31 |
| VCAR0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | 41.7 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | 26.7 |
| VCAR0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | 72 |
| VCAR0035-0090-00A | 35 | 11 | 9 | 26.4 | 9 | 33 | 25.4 | 44.3 |
| VCAR0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | 67 |
| VCAR0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | 21.2 |
| VCAR0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | 22 |
| VCAR0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | 35.9 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | 51.3 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | 53.7 |
| VCAR0075-0200-00A | 75 | 30 | 20 | 26.2 | 15.2 | 65 | 70 | 38.7 |
| VCAR0080-0129-00A | 80 | 35 | 12.9 | 27.7 | 18 | 149 | 49 | 53.8 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | 34.9 |
| VCAR0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | 110 |
| VCAR0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | 40.4 |
| VCAR0110-0380-00A | 110 | 37.4 | 38 | 23.2 | 9 | 150 | 60.4 | 60.4 |
| VCAR0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | 27.5 |
| VCAR0115-0065-00A | 115 | 30.1 | 6.5 | 35 | 17.3 | 52 | 40 | 58 |
| VCAR0130-0310-00A | 130 | 40 | 31 | 30.4 | 20.5 | 280 | 75.6 | 56.5 |
| VCAR0140-0150-00A | 140 | 42.2 | 15 | 33.4 | 26.6 | 80 | 53 | 53.7 |
| VCAR0210-0254-00A | 210 | 66.2 | 25.4 | 56.6 | 28 | 230 | 43.7 | 111.8 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | 64 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | 109.1 |
| VCAR0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | 136.9 |
| VCAR0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | 91 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | 110 |
| VCAR0436-0373-00A | 436 | 142.6 | 37.3 | 38 | 29.8 | 1050 | 76 | 163 |
| VCAR0980-0249-00A | 980 | 605 | 24.9 | 41.5 | 104 | 1426 | 126 | 134.5 |
| VCAR1351-0310-00A | 1351 | 376.8 | 31 | 73.5 | 68 | 1071 | 110 | 143.7 |
The VCAR series cylindrical voice coil motor, because it can provide high thrust, high speed, high accuracy, so it is widely used. This type of motor can produce 0.7 n to 1000N of powerful power, so it occupies 80% or more of the market, and its travel is generally less than 50mm. The motor is mainly used in medical, semiconductor, aviation, automotive and other fields, including valve brakes, short-distance precise position control, small precision replacement measuring instrument, vibration platform and active vibration damping system and many other aspects. The market is focused on the medical, semiconductor, aerospace and automation industries.
Our Services
Competitive advantage products
Full refund in case of bad quality or late delivery
Quality assurance contract
Small order welcomed
Full refund in case of bad quality or late delivery
Quality assurance contract
Small order welcomed
Company Information
Certifications
FAQ
motor:
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
