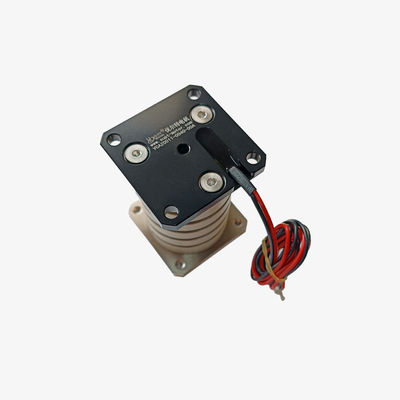

High Precision Flexible Vibration Motor Voice Coil Actuator For Optical Stabilization Systems
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAZ Series |
| Minimum Order Quantity | 2PCS |
| Price | $160 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Small Size, Low Power Consumption, High Vibration Intensity | Vibration | High Vibration |
|---|---|---|---|
| Motor Type | Vibration Motors | Product Type | Flexible Vibration Voice Coil Motor |
| Model Specifications | VCZA0010-0020-00A | Rated Voltage | 25.6V |
| Continuous Current(A) | 1.52 | Peak Force(N) | 10.2 |
| Continuous Force(N) | 4.72 | Actuator Weight(g) | 68 |
| Rated Power | 39 | Material | High Quality Material |
| Highlight | High Precision Vibration Motor,Optical Stabilization Systems Vibration Motor,Flexible Vibration Motor |
||
Product Description
Product Description:
The voice coil motor flexible loading mechanism solves the loading problem which cannot be solved by the traditional vibration plate. The voice coil motor flexible vibrating plate adopts special drive control technology, which can realize the parts moving back and forth, turning, dispersing and aggregating.
The voice coil motor flexible loading mechanism integrates adjustable backlighting light source, which can complete the vibration feeding, automatic control of vision system and automatic control of machine pick-up system.
Flexible vibrating voice coil motors are used in optical stabilization systems:
Optical stabilization system: In the stabilization system of cameras, camcorders and other optical devices, flexible vibrating voice coil motors play an important role. When shaking occurs in the equipment, the motor can quickly drive the lens or image sensor to reverse the vibration to offset the effect of shaking on imaging. By accurately controlling the vibration of the motor, effective compensation for small jitters can be realized, improving the clarity and stability of captured images and videos.
Features:
Flexible vibrating voice coil motors are processed with high strength and good stability materials.
Flexible vibrating voice coil motor, short response time, high vibration frequency, good consistency and stability.
Product Parameters:
| Coil parameters | Tolerance | Symbol | Value | Unit |
| DCR | ±10% | R | 9.5 | Ω |
| Peak Voltage | standard value | Vp | 14.8 | V |
| Maximum current | standard value | Ip | 1.6 | A |
| Force constant | ±7.5% | KF | 2.7 | N/A |
| Back EMF constant | standard value | KD | 2.7 | V/M/Sec |
| 电感 Inductance | ±30% | L | 0.37 | mH |
| Actuator paramters | Symbol | Value | Unit | |
| Peak force | Fp | 4.2 | N | |
| Continuous stall force | Fc | 2.2 | N | |
| Actuator coonstant | Ka | 0.87 | N//W | |
| Electrical time constant | Te | 0.04 | milli-sec | |
| Pmax | Pp | 24 | W | |
| Stroke | S | 1.5 | mm | |
| Clearance of each side of coil | CL | 0.8 | mm | |
| Thermal resistance | Oth | 20 | ℃/W | |
| Maximum coi temp allowed | Tmax | 150 | ℃ | |
| Weight of coil | WTc | 13 | g | |
| Weight of magnet steel | WTE | 56 | g | |
| Weight of Actuator | WTa | 69 | g | |
Application:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
