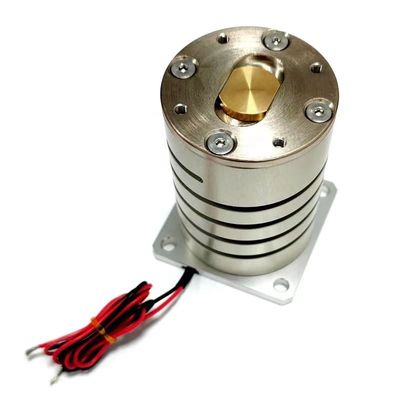

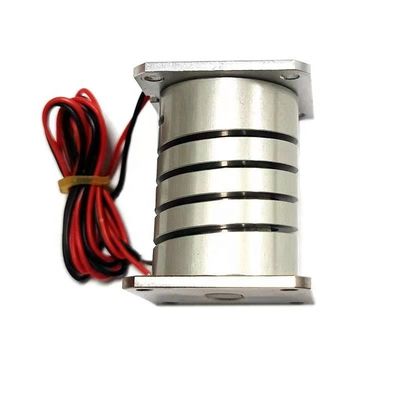

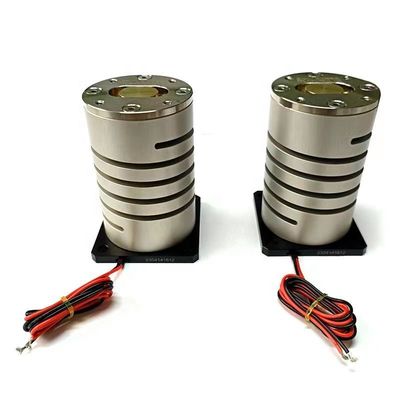

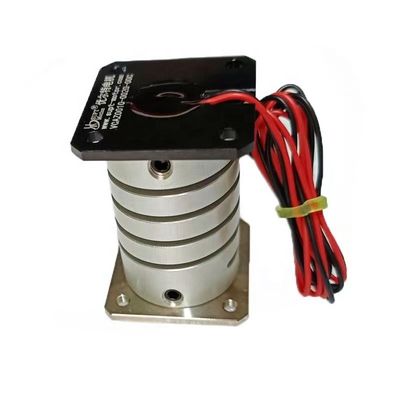

High-Precision Voice Coil Motor Vibration Motors For Automatic Positioning Systems
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCAZ0020-0040 |
| Minimum Order Quantity | 2 pieces |
| Price | $112.00/pieces 2-9 pieces |
| Packaging Details | carton & wooden box vibration motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 3000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, 3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | 50 |
| Continuous Current(A) | 2.6 | Efficiency | IE 1 |
| Peak Force(N) | 20.5 | Maximum Travel(mm) | 3.0 |
| Vibration Motor(V) | 25.9 | Actuator Weight (g) | 375 |
| Continuous Force(N) | 8.9 | Port | Shanghai Vibration Motor |
| Highlight | Linear Positioning System Multi Axis Motor,VCM Multi Axis Motor For Automatic Control,VCM Electric Motor Vibration |
||
Product Description
Multi-Axis Linear Positioning System Vibration Motor For Automatic Control By Machine Picking System
Product Description
The flexible feeding mechanism of voice coil motor solves the feeding problem that cannot be solved by the traditional vibrating disk.
This motor is made of materials with high strength and good stability. Short response time, high vibration frequency, good consistency and stability. With special drive control technology, parts can move forward and backward, turn over, disperse and converge.
The feeding mechanism is integrated with adjustable backlight, which can complete vibration feeding, automatic control by visual system, and automatic control by machine picking system.
Application:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
Vibration motor is a high-quality, high-power, high-efficiency voice coil motor, providing flexible, accurate vibration movement. The vibrating motor model VCAZ0020-0040 is made of durable and high quality materials that provide reliable and long lasting performance. Vibrating motors are also ideal for mobile devices such as smartphones, tablets and other hand-held electronics. Its flexible vibration disc voice coil motor design has high precision vibration to meet your specific requirements. The vibration motor is made of high precision, high strength, high stability, short response time, high vibration frequency, good consistency and stability. Adopting special transmission control technology, the parts can be moved back and forth, flipped, dispersed and converged. They are also very easy to install and maintain, making them ideal for any application.
Technical Parameters:
| Winding constant |
VALUE |
UNIT |
| DC resistance | 10.2 | Ω |
| Voltage @ Fp |
25.9 | V |
| Current @ Fp |
2.6 | A |
| Inductance |
1.3 | mH |
| Peak force |
20.5 | N |
| Con force |
8.9 | N |
| Actuator constant |
2.55 | Ka |
| Power @ Fp |
65.3 | W |
| Total stroke |
3 | mm |
| Max winding temp |
150 | ºC |
| Actuator weight |
110 | g |
Our Services
Technical indicators & specifications can be customized
Satisfactory after-sales service
Company Information
FAQ
stator:
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
