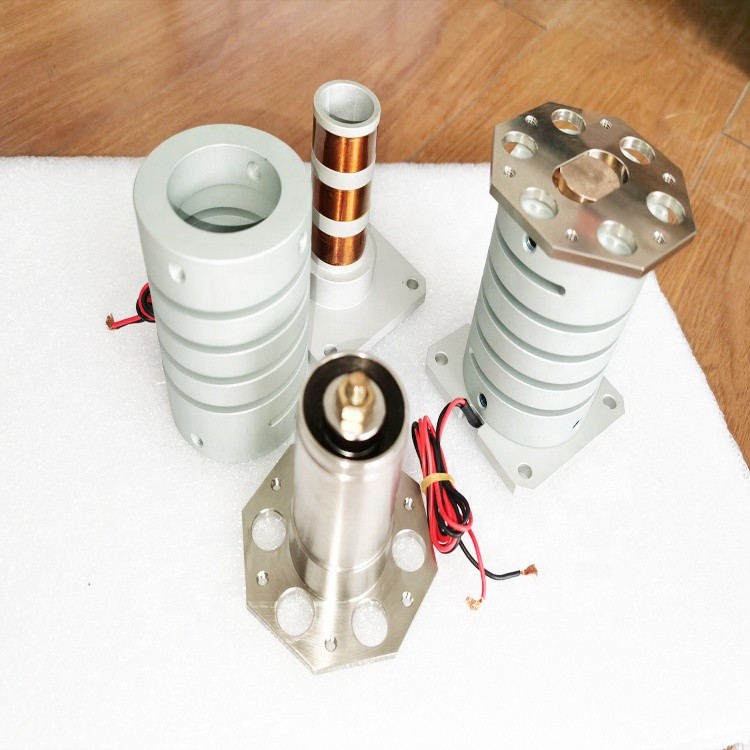

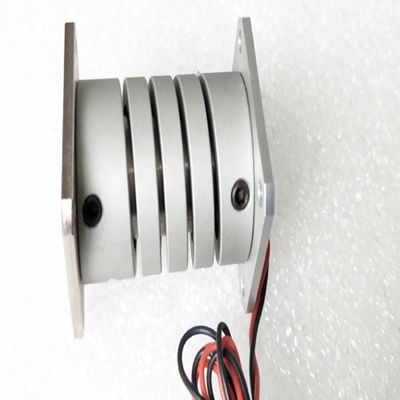

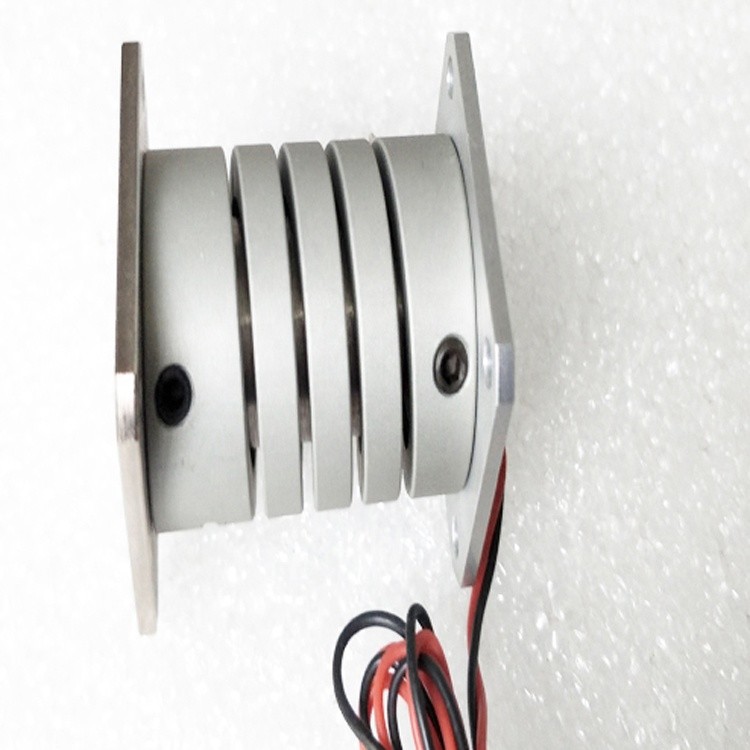

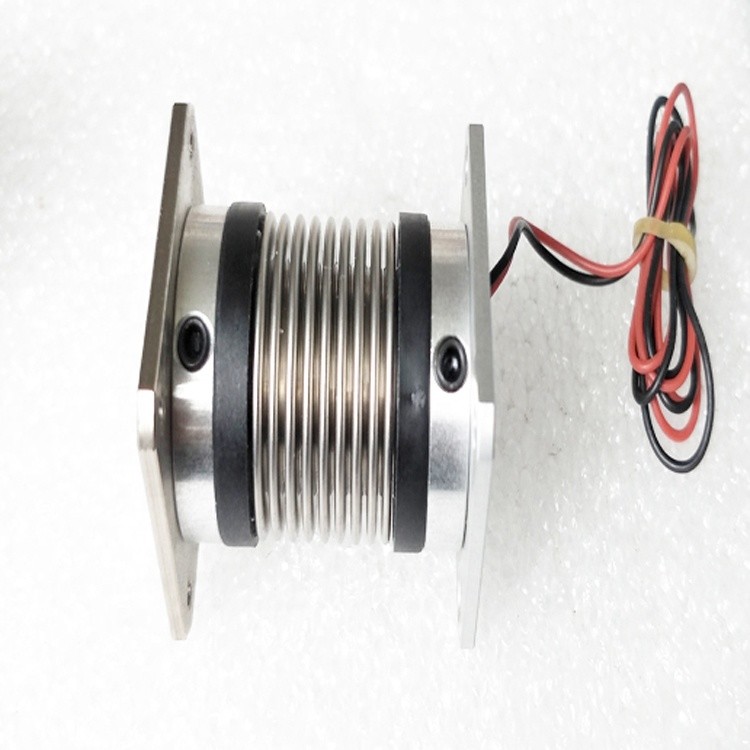

Robot Miniature Vibration Motor Flexible Micro Vibrate Dc Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCAZ0010-0020-00A |
| Minimum Order Quantity | ≥1 |
| Price | $100.00/pieces 1-39 pieces |
| Packaging Details | Carton packing |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Type | Micro Motor, Motor |
|---|---|---|---|
| Customized | Yes | Rated Power | 39 |
| Nominal Voltage | 25.6 | Application | UAV, Robot, Medical Ventilator, Microscope, Optics |
| Number Of Poles | 3 | Peak Force(N) | 10.2 |
| Maximum Travel(mm) | 2 | Voice Coil Motor(V) | 25.6 |
| Continuous Force(N) | 4.72 | Back EMF Constant(kb) | 6.7 |
| Actuator Weight(g) | 68 | Continuous Current(A) | 1.52 |
| Highlight | Robot Miniature Vibration Motor 2mm,Miniature Vibration Motor Flexible,Micro Vibrate Dc Motor 2mm |
||
Product Description
Miniature Vibration Motor Application In Flexible Vibration Small Size
Product Description
A small vibration motor plays a crucial role in the realm of flexible vibration feeding. It functions by generating controlled vibrations that facilitate the movement and conveyance of materials. This motor imparts controlled oscillations to the feeding platform or conveyor, enabling efficient and consistent transportation of various materials, such as particles or components, along the desired path. The vibrations ensure that the materials flow smoothly and evenly, preventing blockages and ensuring a steady feed rate. This technology finds applications in industries like automation, packaging, and assembly, enhancing the precision and reliability of material handling processes.
Technical Parameters:
| Winding constant |
VALUE |
UNIT |
| DC resistance | 10.2 | Ω |
| Voltage @ Fp |
25.9 | V |
| Current @ Fp |
2.6 | A |
| Inductance |
1.3 | mH |
| Peak force |
20.5 | N |
| Con force |
8.9 | N |
| Actuator constant |
2.55 | Ka |
| Power @ Fp |
65.3 | W |
| Total stroke |
3 | mm |
| Max winding temp |
150 | ºC |
| Actuator weight |
110 | g |
Applications:
The flexible vibration voice coil motor is made of material with high strength and good stability. The flexible vibration voice coil motor has the advantages of short response time, high vibration frequency, good induction and good stability. The flexible vibration plate of voice coil motor adopts special drive and control technology, which can realize the forward and reverse motion turning, dispersion and aggregation of parts. The flexible feed mechanism of voice coil motor integrates adjustable backlight, which can accomplish automatic control of vibration feed, vision system and machine pick-up system. Our vibrating motor design provides reliable and long-lasting performance. They are also very easy to install and maintain, making them ideal for any application.
Our Services
Technical indicators & specifications can be customized
Satisfactory after-sales service
Company Information
Packaging & Shipping
FAQ
voice coil motor:
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
