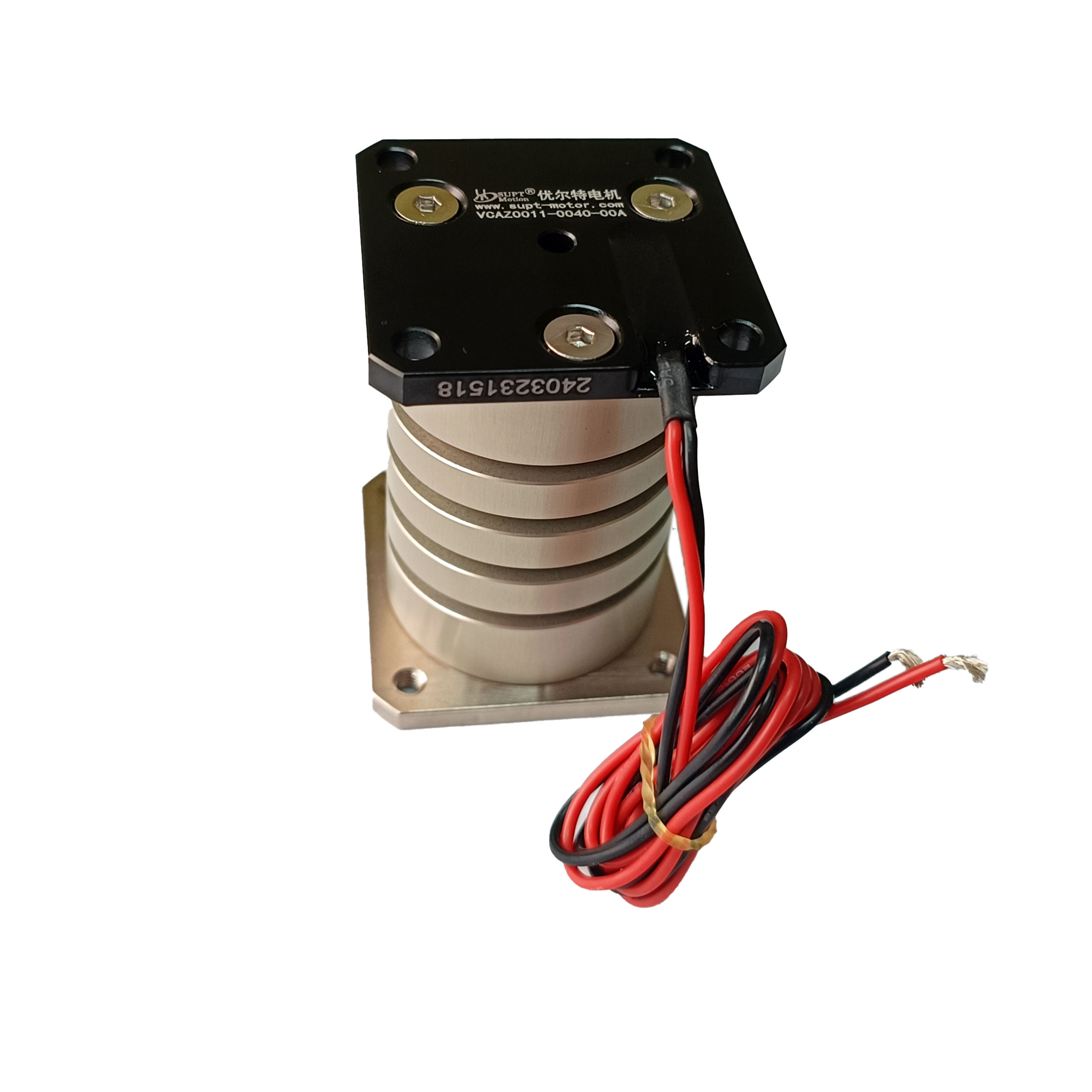

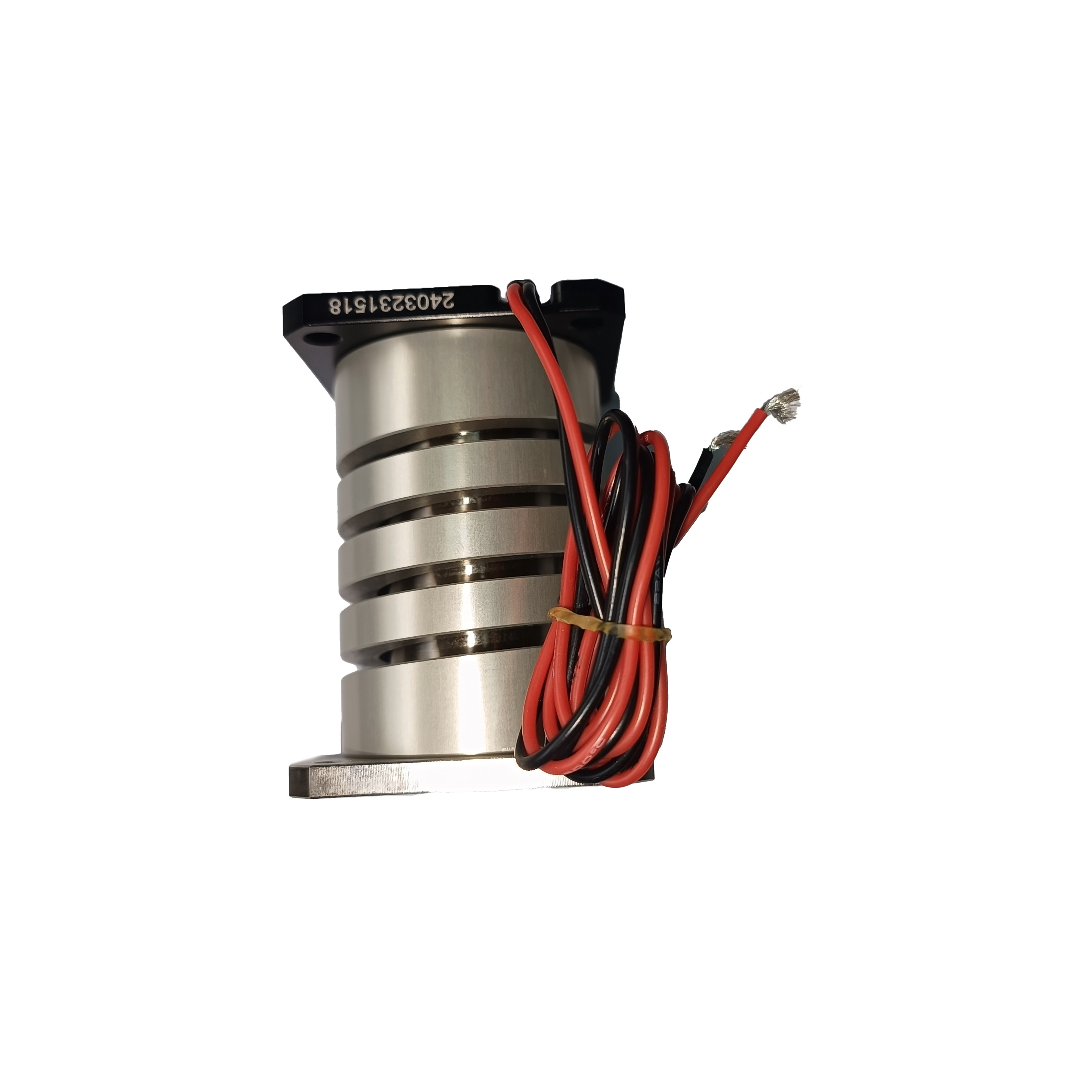

Micro Flexible Vibration Motors For High Frequency Conveying And Feeding Systems
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAZ Series |
| Minimum Order Quantity | 1PCS |
| Price | $146 |
| Packaging Details | Carton Packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Protect Feature | Totally Enclosed | Model | VCAZ0010-0020-00A |
|---|---|---|---|
| Number Of Poles | 10 | Starting Current | 30mA |
| Noise | Low Noise | Actuator Weight(g) | 69 |
| Rated Torque | 0.05g.cm | Peak Voltage | 14.8V |
| Peak Force | 10.2N | Application | UAV, Robot, Medical Ventilator, Microscope, Optics |
| Type | Micro Motor | ||
| Highlight | High Frequency Vibration Motors,Micro Motor Vibration Motors,Flexible Vibration Motors |
||
Product Description
Product Description:
A voice coil motor is a common type of motor, also known as a vibration motor or vibration motor. It is mainly used to generate vibration to produce rotational or linear motion of an object.
The flexible loading mechanism of the voice coil motor solves the loading problem that cannot be solved by the traditional vibrating disc.
0.2mm or less sheet parts feeding, traditional vibration plate feeding, encountering thin sheet class is easy to stack, can not be separated; and our voice coil motor flexible feeder using multi-directional vibration dispersion of parts, vision photo positioning, robot gripping, a good solution to the thin skin class parts feeding problem.
Flexible vibration voice coil motor, short response time, high vibration frequency, consistency and stability.
Flexible vibrating voice coil motor is made of high strength and good stability material.
Voice coil motor flexible feeding vibration platform combined with vision gripping, can store a variety of materials selection procedures, a minute to switch the product type production, perfect for the current flexible small batch multi-species automation needs.
In vibratory conveying voice coil motors can be used for conveying and feeding materials by generating high-frequency vibrations to propel them. For example, they can convey parts from one workstation to another in an automated production line.
Features:
Vibratory feeding platform with simple structure, small size, magnetic levitation technology, less maintenance, long life.
Precision position feedback vibration controllable, low vibration, fast speed, high frequency, no delay.
| Winding constant | VALUE |
| DC resistance | 9.5 |
| Voltage @ Fp | 14.8 |
| Current @ Fp | 1.6 |
| Inductance | 0.37 |
| Peak force | 10.2 |
| Con force | 2.2 |
| Actuator constant | 0.87 |
| Power @ Fp | 24 |
| Total stroke | 1.5 |
| Max winding temp | 150 |
| Actuator weight | 69 |
Product Parameter:
| Coil parameters | Tolerance | Symbol | Value | Unit |
| DCR | ±10% | R | 9.5 | Ω |
| Peak Voltage | standard value | Vp | 14.8 | V |
| Maximum current | standard value | Ip | 1.6 | A |
| Force constant | ±7.5% | KF | 2.7 | N/A |
| Back EMF constant | standard value | KD | 2.7 | V/M/Sec |
| Inductance | ±30% | L | 0.37 | mH |
| Actuator paramters | Symbol | Value | Unit | |
| Peak force | Fp | 10.2 | N | |
| Continuous stall force | Fc | 2.2 | N | |
| Actuator coonstant | Ka | 0.87 | N//W | |
| Electrical time constant | Te | 0.04 | milli-sec | |
| Pmax | Pp | 24 | W | |
| Stroke | S | 1.5 | mm | |
| Clearance of each side of coil | CL | 0.8 | mm | |
| Thermal resistance | Oth | 20 | ℃/W | |
| Maximum coi temp allowed | Tmax | 150 | ℃ | |
| Weight of coil | WTc | 13 | g | |
| Weight of magnet steel | WTE | 56 | g | |
| Weight of Actuator | WTa | 69 | g | |
Product Applications:
The voice coil motor flexible vibrating disc adopts special drive control technology, which can realise the forward and backward movement of parts, turning, dispersion and aggregation.
The voice coil motor flexible loading mechanism integrates adjustable backlighting light source, which can complete the vibration feeding, automatic control of the vision system and automatic control of the machine's individual pick-up system.
