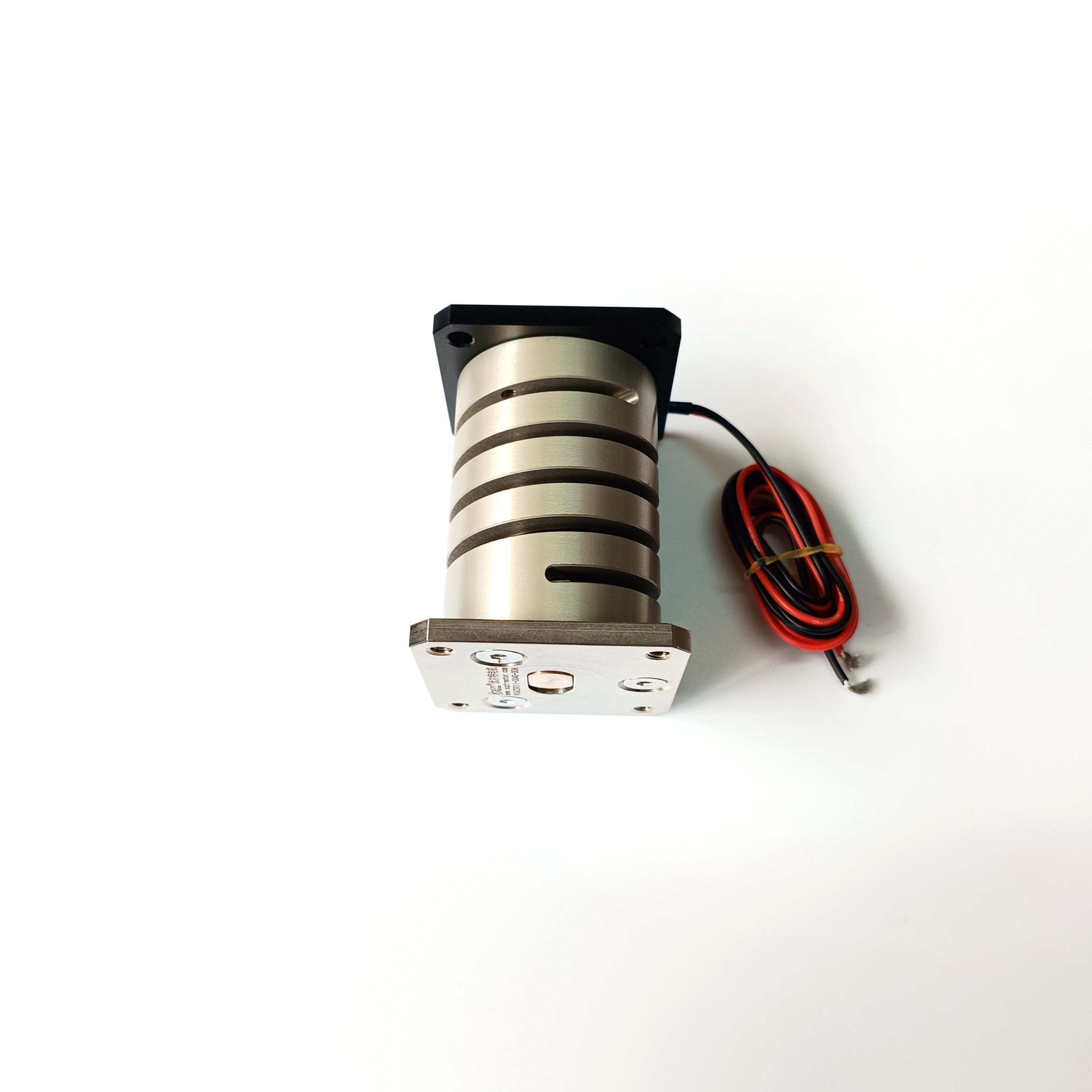

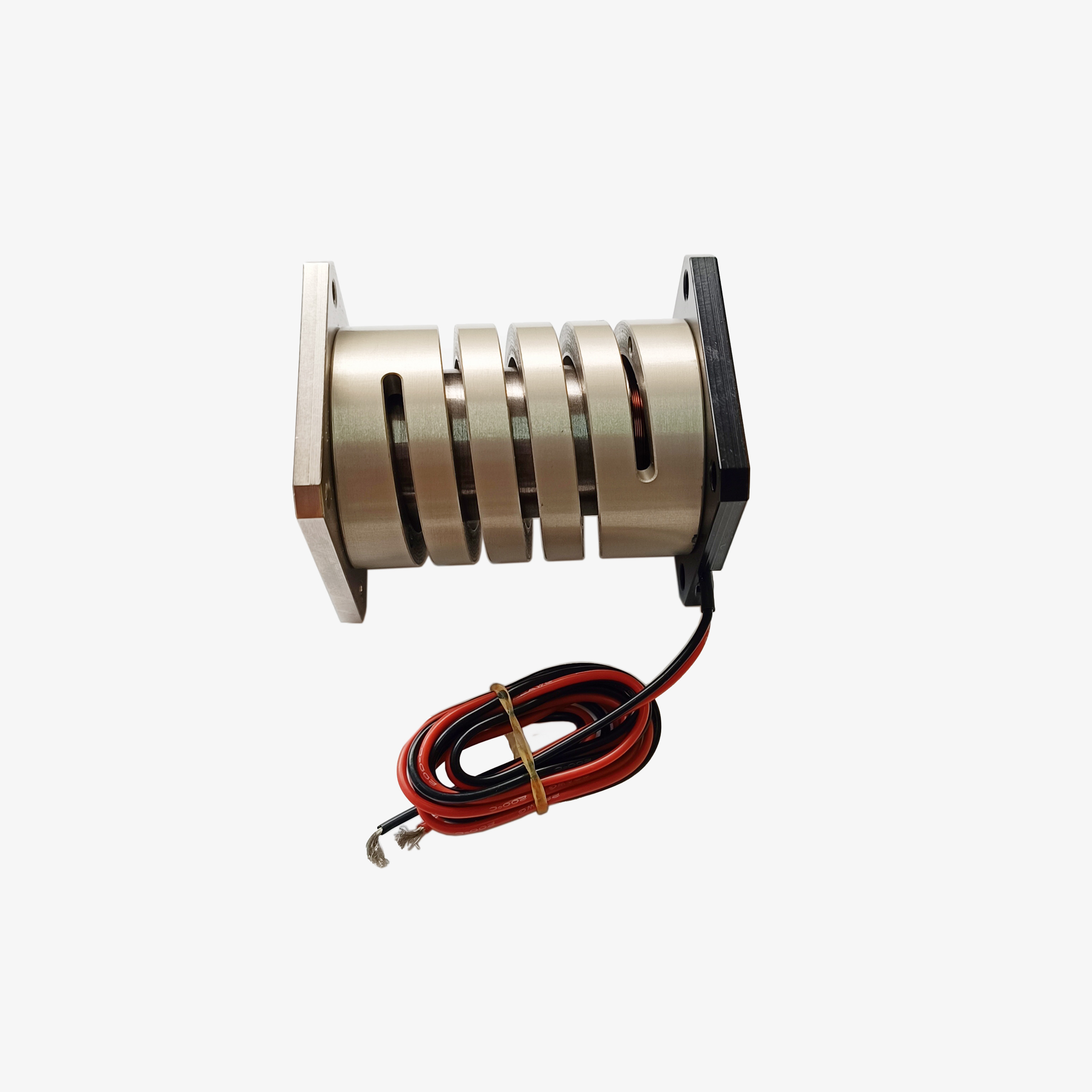

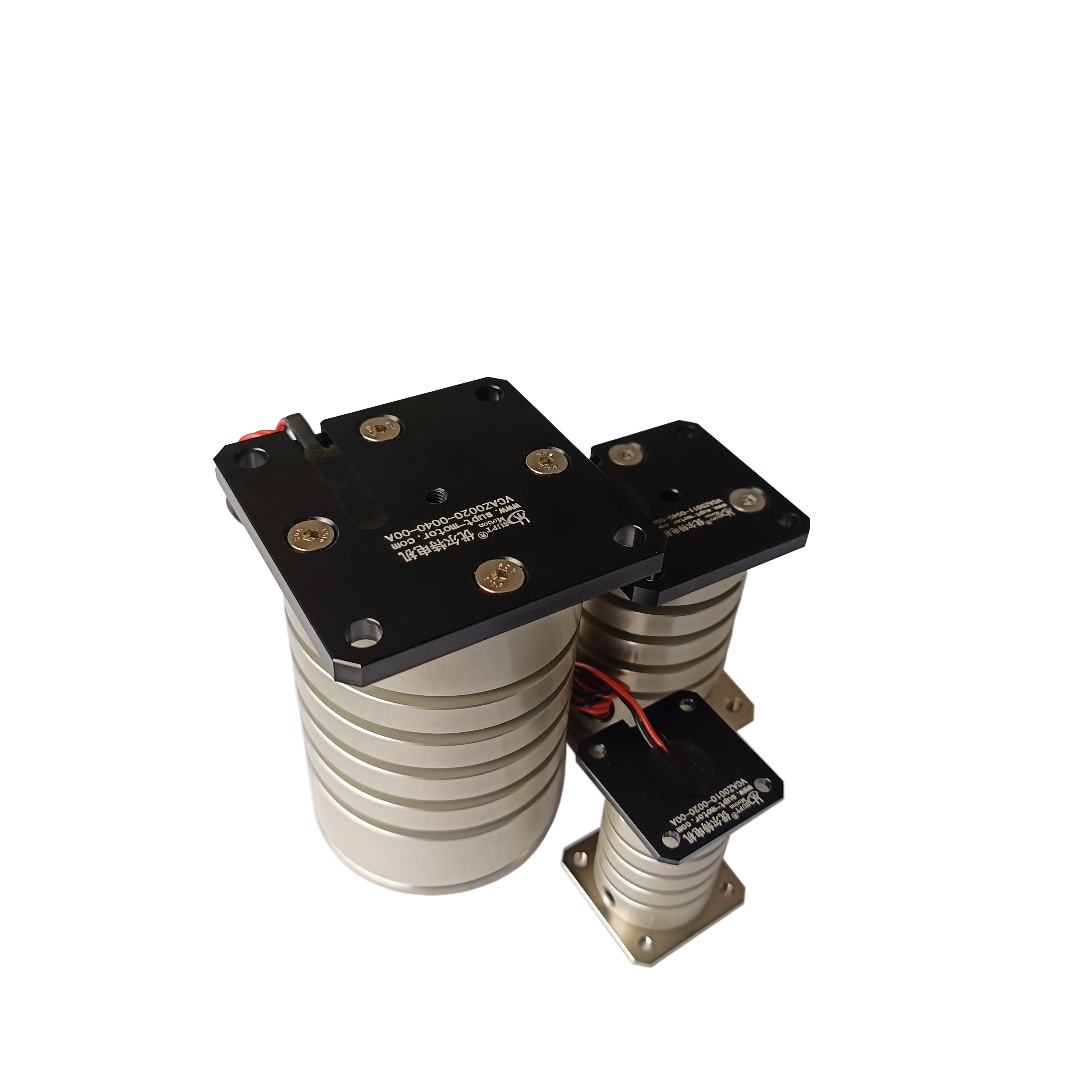

High Response Vibrating Motor With Control For Active Vibration Isolation System
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | CE, ISO9001 |
| Model Number | VCAZ Series |
| Minimum Order Quantity | 3PCS |
| Price | $147 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | VCAZ0010-0020-00A | Warranty | 3months-1year |
|---|---|---|---|
| Noise | Low Noise | Motor Type | Vibration Motors |
| Temperature | High Temperature | Rated Power | 39 |
| Nominal Voltage | 25.6 | Number Of Poles | 10 |
| Peak Force(N) | 10.2 | Voice Coil Motor(V) | 25.6 |
| Highlight | Control Vibrating Motor,Active Vibration Isolation System Vibrating Motor,High Response Vibrating Motor |
||
Product Description
Product Description:
The flexible loading mechanism of the voice coil motor solves the loading problem that cannot be solved by the traditional vibrating plate.
Flexible vibrating voice coil motor is processed with high strength and good stability materials.
Flexible vibration voice coil motor, short response time, high vibration frequency, consistency and stability.
Good consistency and stability.
Voice coil motor flexible vibration plate adopts special drive control technology, which can realize parts
The flexible vibrating plate with voice coil motor adopts special drive control technology, which can realize the forward and backward movement, turning, dispersing and polymerizing of the parts.
The voice coil motorized flexible loading mechanism integrates an adjustable backlighting light source, which enables vibratory feeding and automatic control of the vision system.
Vibratory feeding, automatic control of vision system and automatic control of machine pick-up system.
Features:
Selling Units:
Single item
Single package size:
30X20X20 cm
Single gross weight:
0.500 kg
| Winding constant | VALUE |
| DC resistance | 9.5 |
| Voltage @ Fp | 14.8 |
| Current @ Fp | 1.6 |
| Inductance | 0.37 |
| Peak force | 4.2 |
| Con force | 2.2 |
| Actuator constant | 0.87 |
| Power @ Fp | 24 |
| Total stroke | 1.5 |
| Max winding temp | 150 |
| Actuator weight | 69 |
Product Parameters :
| Coil parameters | Tolerance | Symbol | Value | Unit |
| DCR | ±10% | R | 9.5 | Ω |
| Peak Voltage | standard value | Vp | 14.8 | V |
| Maximum current | standard value | Ip | 1.6 | A |
| Force constant | ±7.5% | KF | 2.7 | N/A |
| Back EMF constant | standard value | KD | 2.7 | V/M/Sec |
| 电感 Inductance | ±30% | L | 0.37 | mH |
| Actuator paramters | Symbol | Value | Unit | |
| Peak force | Fp | 4.2 | N | |
| Continuous stall force | Fc | 2.2 | N | |
| Actuator coonstant | Ka | 0.87 | N//W | |
| Electrical time constant | Te | 0.04 | milli-sec | |
| Pmax | Pp | 24 | W | |
| Stroke | S | 1.5 | mm | |
| Clearance of each side of coil | CL | 0.8 | mm | |
| Thermal resistance | Oth | 20 | ℃/W | |
| Maximum coi temp allowed | Tmax | 150 | ℃ | |
| Weight of coil | WTc | 13 | g | |
| Weight of magnet steel | WTE | 56 | g | |
| Weight of Actuator | WTa | 69 | g | |
Applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
