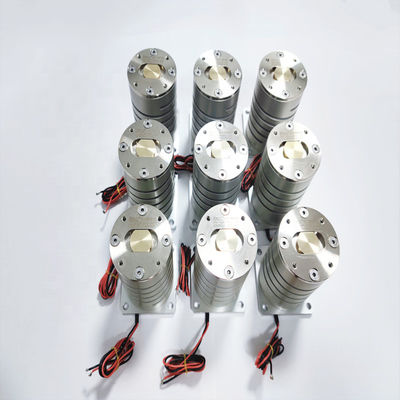

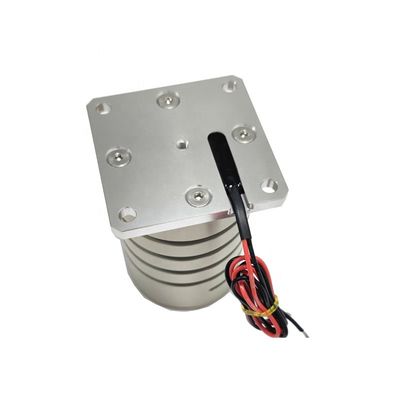

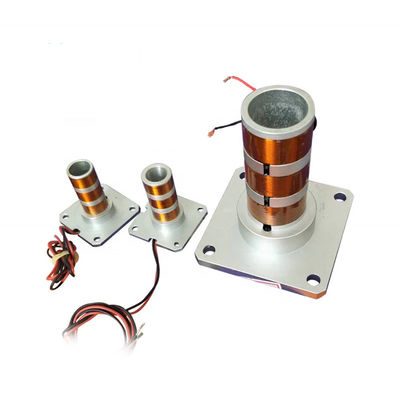

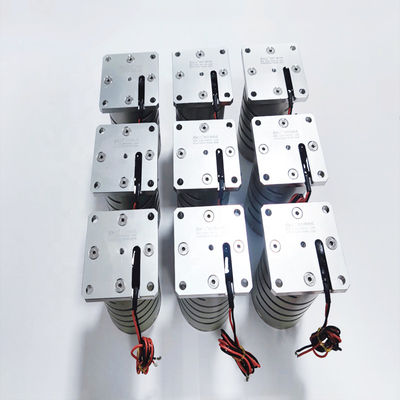

3000N Vibration Motors Screw Couplings For Aerospace High Frequency Vibration Motors
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ISO9001 |
| Model Number | VCAZ0020-0040 |
| Minimum Order Quantity | ≥1 |
| Price | $112.00/pieces >=1 pieces |
| Packaging Details | carton & wooden box vibration motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 3000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, 3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | 50 |
| Continuous Current(A) | 2.6 | Efficiency | IE 1 |
| Peak Force(N) | 20.5 | Maximum Travel(mm) | 3.0 |
| Vibration Motor(V) | 25.9 | Actuator Weight (g) | 375 |
| Continuous Force(N) | 8.9 | Port | Shanghai Vibration Motor |
| Highlight | 3000N Vibration Motors,50rpm Vibration Motors For Aviation,3000N Spiral Type Coupling Vibrating Motor |
||
Product Description
3000N Spiral-Type Coupling Vibrating Motor For Aviation High Frequency
Product Description
The aviation spiral coupling high-frequency vibration motor refers to a high-frequency vibration motor applied in the aviation field, whose working principle involves spiral structure and coupling technology. This type of motor may be used in aviation engineering to achieve specific vibration control, excitation, or testing needs. Aviation spiral coupled high-frequency vibration motors may be used for vibration testing of aircraft structures to evaluate their durability and reliability. In addition, they may also be used to simulate vibration under different flight conditions, helping to improve aircraft design. These motors may be integrated into aviation test benches, simulators, or actual flight tests.
Applications:
Vibration Motors, also known as vibration-excited motors, are brushless motors used to generate vibration for a variety of applications. These motors are well suited for applications requiring precise vibration control and stability. They are used in a variety of industries including yachts, cars, electric bikes, 3D printing, microscopes, robotics, medical breathing machines, optical projects and the military. They are also used in applications such as medical devices, robotics, games and consumer products. The main characteristics of vibration motor are large power, small size, light weight, low noise, high vibration frequency, good induction, good stability, high precision vibration frequency, good induction, good stability, with high accuracy and wide voltage range, these motors can be used in a variety of applications, including vibration testing, vibration isolation, vibration suppression and vibration control. Vibration Motors provide reliable, cost-effective solutions for vibration control and power generation. They are easy to install and maintain, and come in a variety of sizes and power levels to meet the needs of any application.
Technical Parameters:
| Winding constant |
VALUE |
UNIT |
| DC resistance | 10.2 | Ω |
| Voltage @ Fp |
25.9 | V |
| Current @ Fp |
2.6 | A |
| Inductance |
1.3 | mH |
| Peak force |
20.5 | N |
| Con force |
8.9 | N |
| Actuator constant |
2.55 | Ka |
| Power @ Fp |
65.3 | W |
| Total stroke |
3 | mm |
| Max winding temp |
150 | ºC |
| Actuator weight |
110 | g |
Our Services
Technical indicators & specifications can be customized
Satisfactory after-sales service
Company Information
Packaging & Shipping
Certifications
FAQ
stator:
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
